MACHINE OVERVIEW
1
2
3
4
5
6
7
8
9
10
11
NOTE: L300 Diesel Option shown.
Standard unit includes propane
gas tank system.

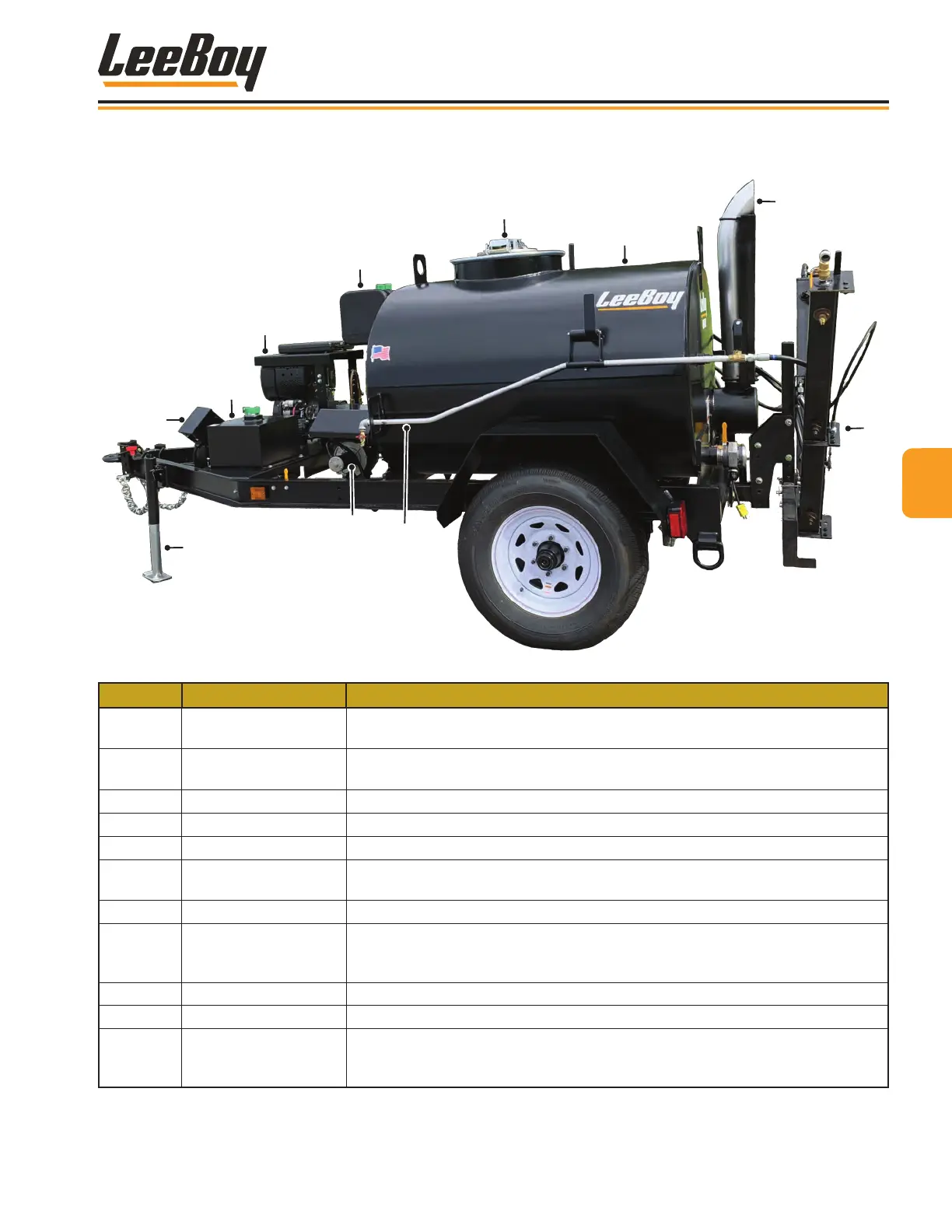

Figure 3-1. Machine Overview
ITEM NO. CONTROL NAME FUNCTION
1
Diesel Fuel/Blower
Control Box
Diesel Option Only:
2 Diesel Tank
Fuel tank if equipped with the diesel system option. (Gas engine fuel tank is
located on top of the engine.)
3 Engine Gas or optional diesel engine (shown).
4 Flush Tank Contains the uid used to ush and clean out the pump and circulating system.
5 Manhole Opening for lling the asphalt tank with material.
6 Asphalt Tank
Holds asphalt material. The L300 model holds 300 gallons (1135.6 liters) and the
L600 model holds 600 gallons (2271.2 liters).
7 Exhaust Stack Directs exhaust away from the operating area.
8 Spray Bar (Option)
Distributes material through spray nozzles (6) onto the surface at width up to 8 feet
(2.4 m). Two spray bars with 3 nozzles each fold up when not in use. Individual
nozzles can be turned on or off to vary spray width.
9 Swivel Jack Used to hook and unhook the unit from a towing vehicle.
10 Diesel Burner Burner system (propane gas or optional diesel fuel) heats the tack tank material.
11 Hand Spray Wand
The 6-foot spray wand is used to apply material to the surface in small areas. Its
heavy-duty hose is 40 feet and easily extends or retracts onto its recoiling hose
reel.
33
Components
L300 and L600 Tack Distributors 3-5
