BURNER CONTROLS
LPG Propane Gas SystemLPG Propane Gas System
1
2
3
LPG Tank
4
5
6
Ignitor
Wand

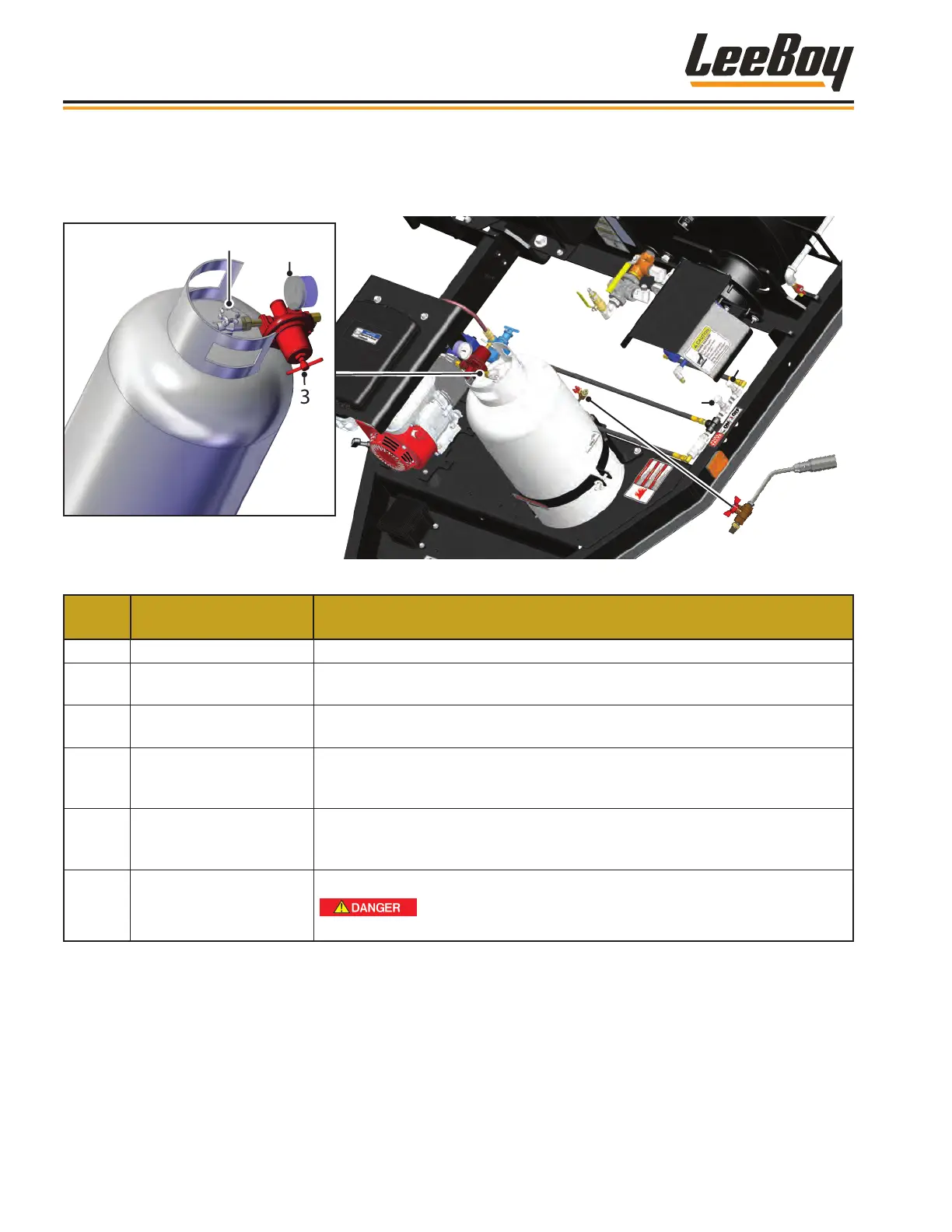

Figure 3-4. LPG Burner Controls
ITEM
NO.
CONTROL NAME FUNCTION
1 LPG Tank Valve Turn valve clockwise to open. Turn valve counterclockwise to close.
2
LPG Burner Pressure
Gauge
Displays the LPG burner pressure (PSI).
3 LPG Burner Regulator
Sets the LPG burner pressure. Turn valve clockwise to increase pressure.
Turn valve counterclockwise to decrease pressure.
4 Shut-Off Valve
Controls the ow of fuel to the burner. Turn counterclockwise to open the
valve, which provides gas to the burner. Turn clockwise to close the valve and
extinguish the burner.
5 Pilot Valve
Controls operation of the pilot light. Turn clockwise to close the valve when
lighting the pilot light (use ONLY the ignitor wand to light the burner). Turn
counterclockwise to allow full ow after the burner is lit.
6 Ignitor Wand Valve
Used to light the burner system.
ONLY use a torch striker to light the ignitor wand. NEVER
use a match or other source of ame as an explosion could occur.
Components
