VALVE CONTROLS OVERVIEW
An understanding of the valve controls, which directs asphalt material ow in the various modes, is important for
distributor operation. The graphic below shows the valves, their location and their function.
To prevent possible burns from leaking material, ensure all hose connections are secure before
opening valves or beginning any operation.
LPG
Tank
Valve
Spray Bar
Lever
Circulating
Lever
Spray Wand
Lever
Selector
Lever
Liquid Asphalt
Valve
Sampling Valve
Flush
Valve

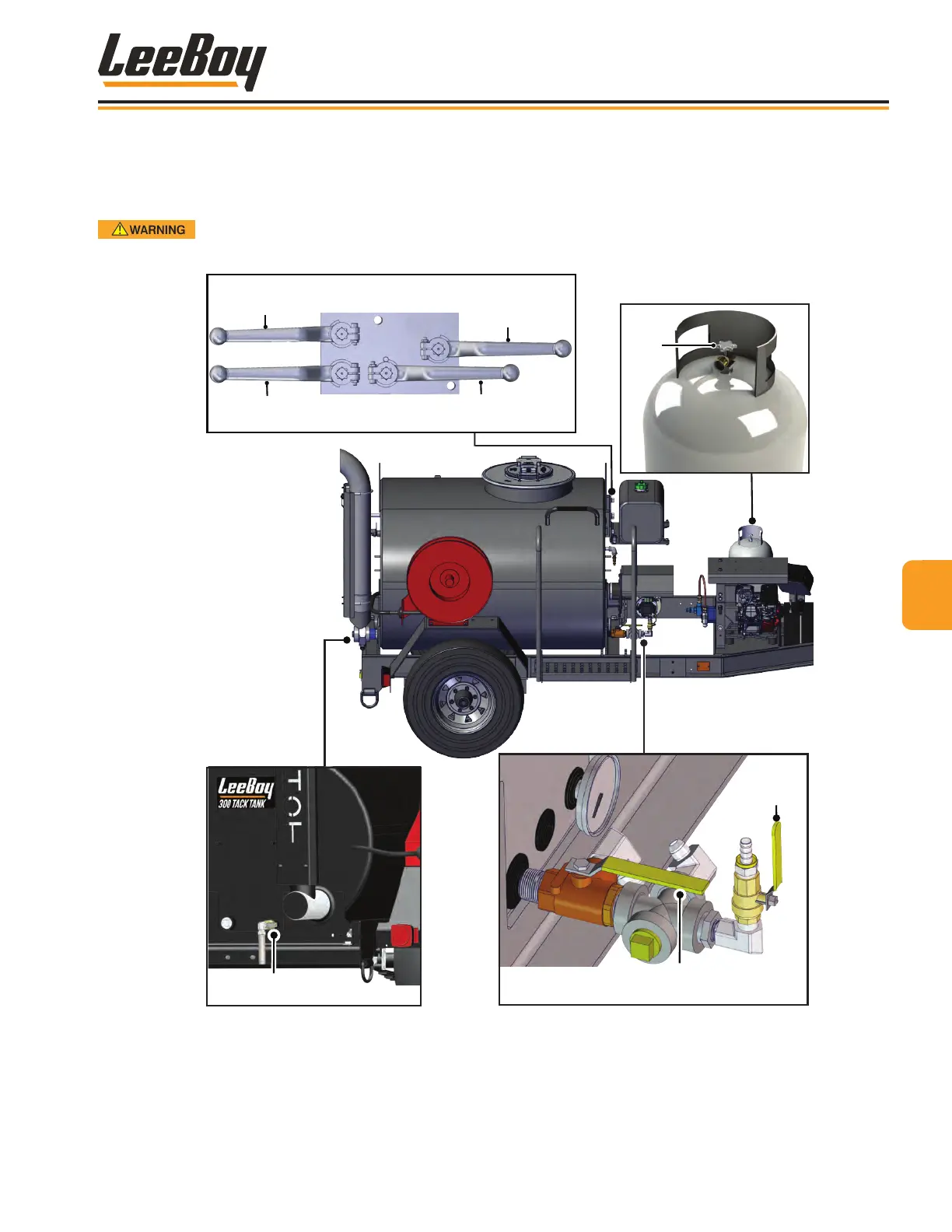

Figure 4-6. Tack Distributor Valve Controls Overview
