Control terminals
Important notes
5.6
5.6.1

5.6−2
EDSVF9383V EN 7.1−04/2012
 Stop!
Æ’ Connect or disconnect the terminal strips only if the controller
is disconnected from the mains!
Æ’ Wire the terminal strips before connecting them!
Æ’ Unused terminal strips must also be plugged on to protect the
contacts.

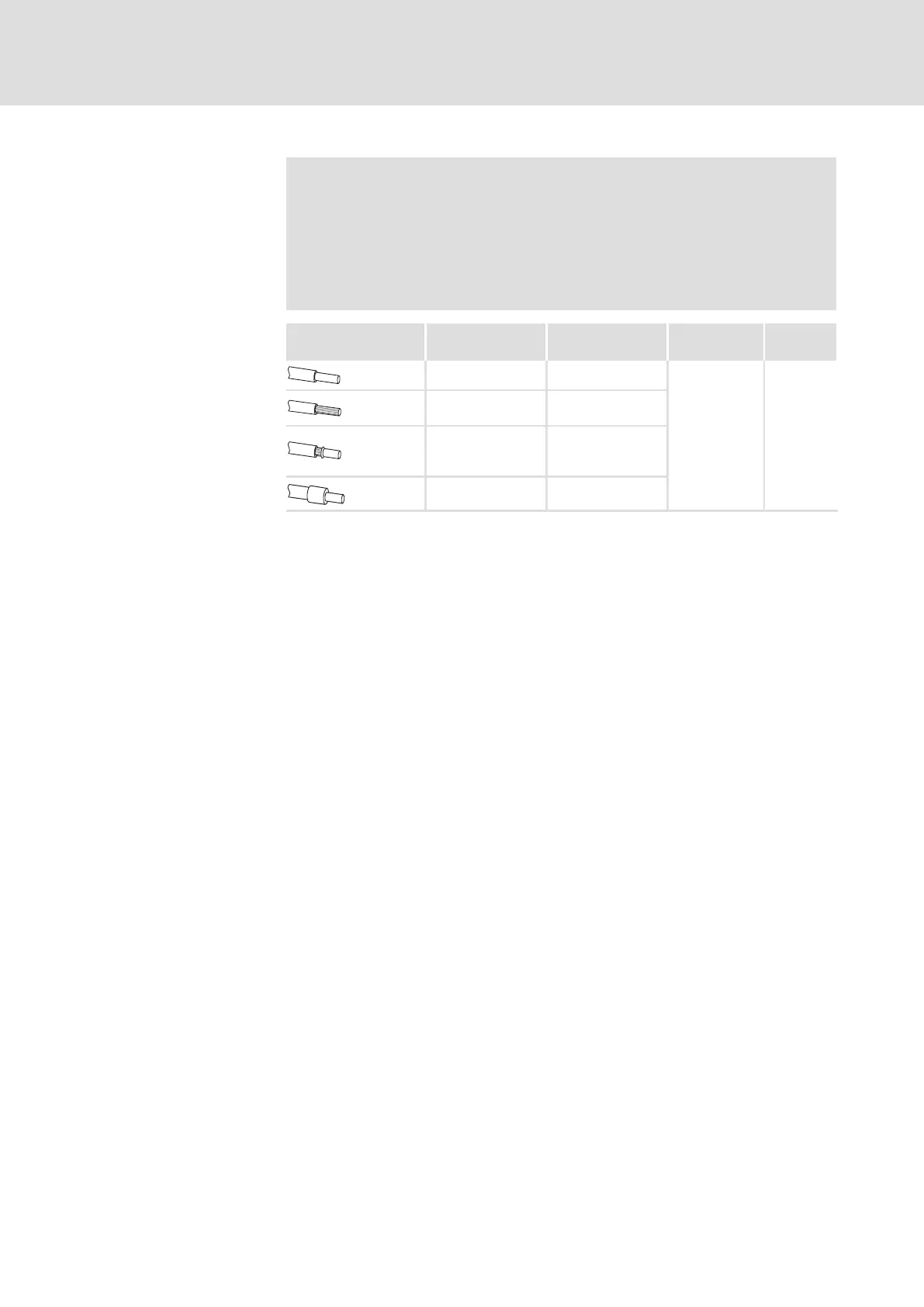

Cable type Wire end ferrule Maximum cable
cross−section
Tightening
torque
Stripping
length
Rigid — 2.5 mm
2
(AWG 14)
0.5 ... 0.6 Nm
(4.4 ... 5.3 lb−in)
5 mm
Flexible
Without wire end
ferrule
2.5 mm
2
(AWG 14)
Flexible
Wire end ferrule
without plastic
sleeve
2.5 mm
2
(AWG 14)
Flexible
Wire end ferrule
with plastic sleeve
2.5 mm
2
(AWG 14)
Terminal data
