Installing of the standard device
Basic devices in the power range 250 ... 400 kW
Dimensions
4
4.3
4.3.1
4.3−1
EDSVF9383V EN 7.1−04/2012
4.3 Basic devices in the power range 250 ... 400 kW
Tip!
ƒ Lenze recommends to install an air lock. The air lock serves to
dissipate the heated cooling air directly from the control
cabinet.
– Order no. E93ZWL2
ƒ A drilling jig for marking the bore holes is available as dxf−file
in the Internet in the "Download" area under www.Lenze.de.
4.3.1 Dimensions
a1
a2
d
0
0
b
b1
c
a3
a
0
9300VEC039

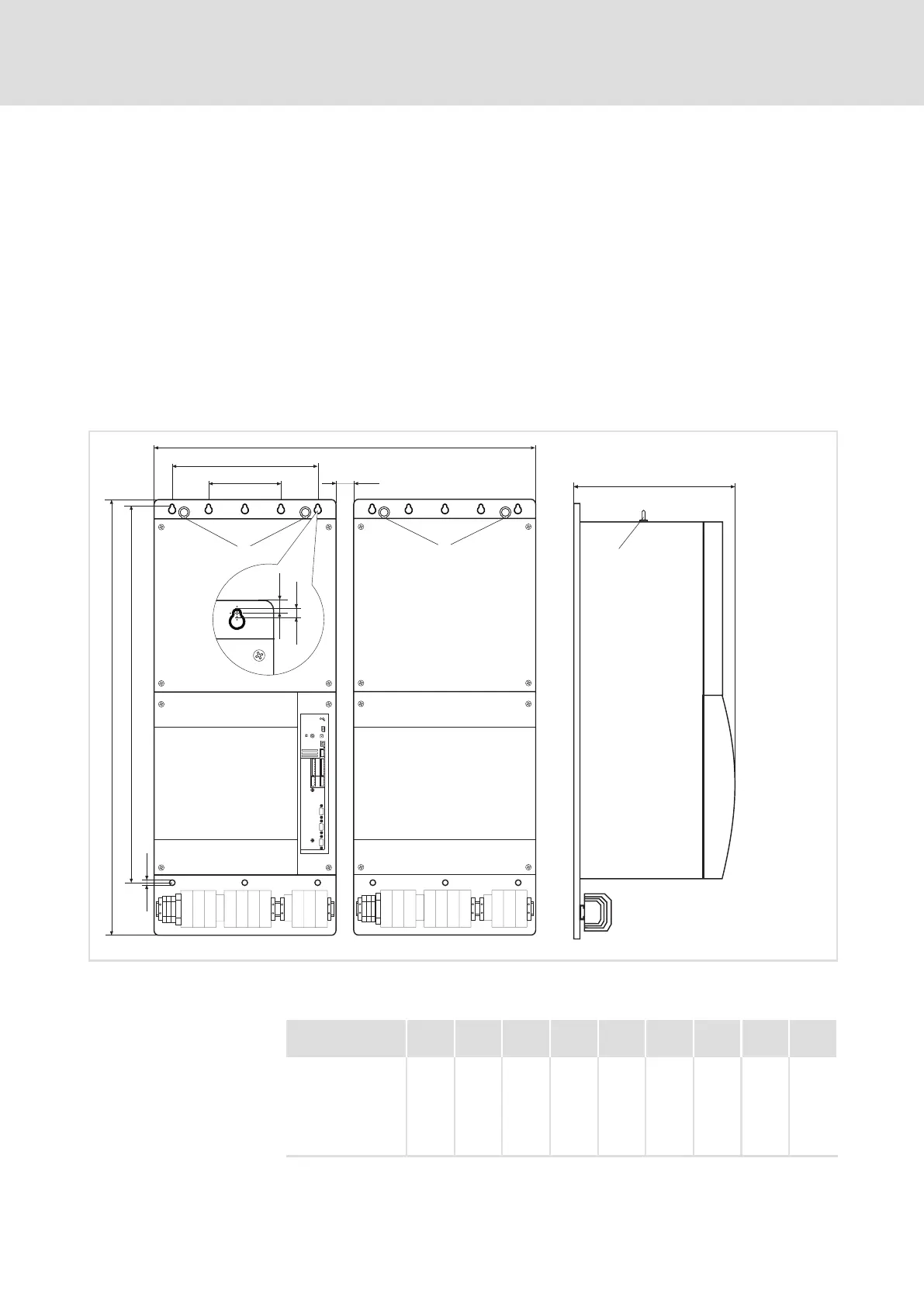

Fig. 4.3−1 Dimensions
Eyebolts
Type a
[mm]
a1
[mm]
a2
[mm]
a3
[mm]
b
[mm]
b1
[mm]
b2
[mm]
c
[mm]
d
[mm]
EVF9381−EV
EVF9381−EVVxxx
EVF9382−EV
EVF9382−EVVxxx
EVF9383−EV
EVF9383−EVVxxx
1050 450 225 50 1145 1005 15 436
9
(16×)
