Basic devices in the power range 110 ... 200 kW
Mains connection 400 V devices
5.4
5.4.2

5.4−3
EDSVF9383V EN 7.1−04/2012
5.4.2 Mains connection 400 V devices
 Stop!
The user is responsible for sufficient strain relief!
BR2
BR1
PE
UVWL1 L2 L3
PE
L1, L2,
L3
25-30 Nm
M8
221-264 lb-in
PE
15-20 Nm
M6
133-176 lb-in
40 mm
9300VEC003

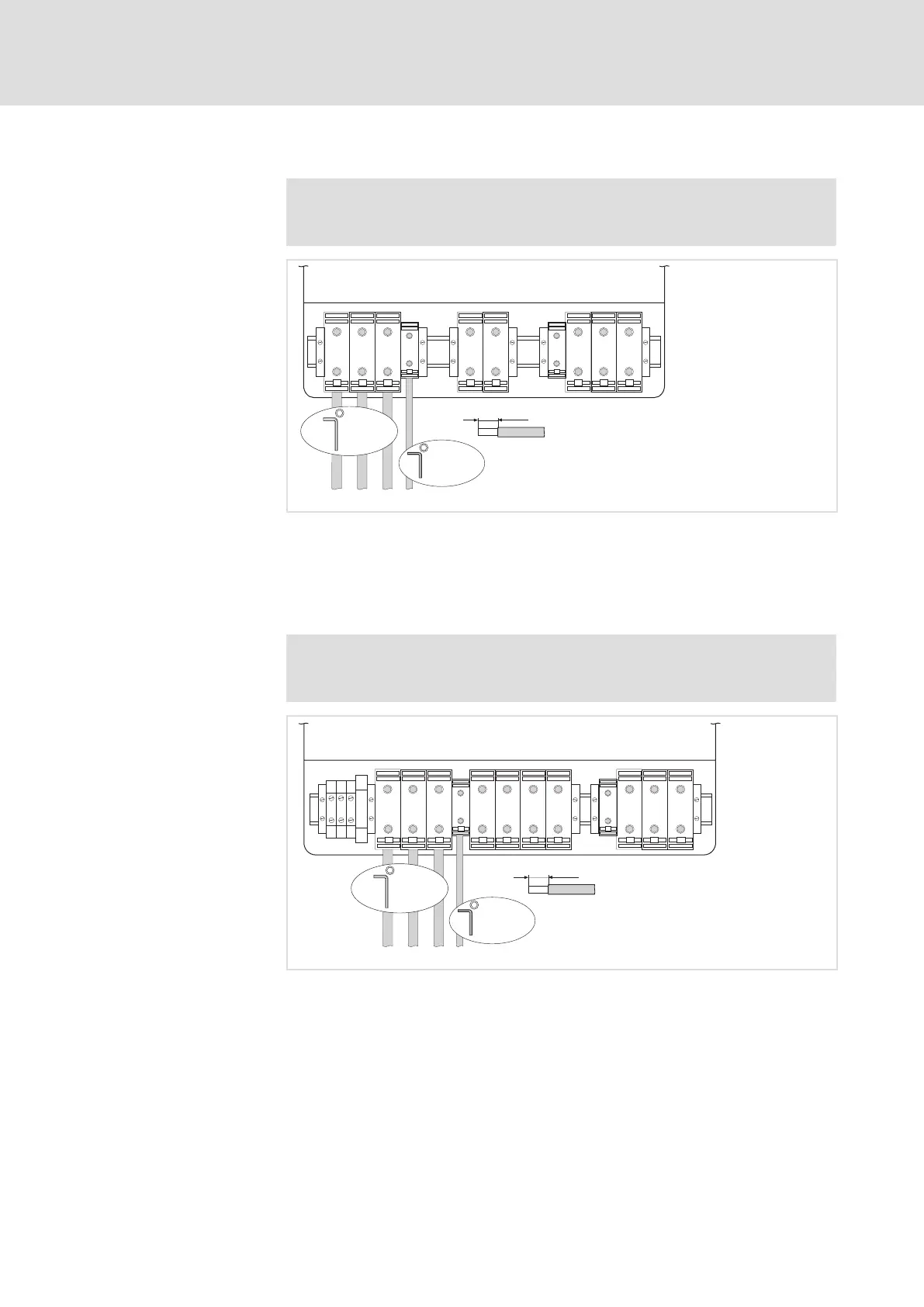

Fig. 5.4−2 Mains connection example
BR1, BR2 Brake resistors can only be operated with variants V060 and
V110
5.4.3 Mains connection 400/500 V devices
 Stop!
The user is responsible for sufficient strain relief!
BR2BR1+UG -UG
PE
U
VWL1
101
102
103
104
L2
L3
PE
L1, L2,
L3
25-30 Nm
M8
221-264 lb-in
PE
15-20 Nm
M6
133-176 lb-in
40 mm
9300VEC032
Fig. 5.4−3 Mains connection example
BR1, BR2 Brake resistors can only be operated with variants V270 and
V300
