Braking operation
Lenze brake resistors
Dimensions
12
12.2
12.2.2

12.2−2
EDSVF9383V EN 7.1−04/2012
12.2.2 Dimensions
c3
c1
c2
b
b1
a2
a3
a4
a
a1
e
e1
c
Achtung!
Caution!
6.5 x 15.5
> 100 mm
>200mm
>25mm
>25mm
9300VEC041

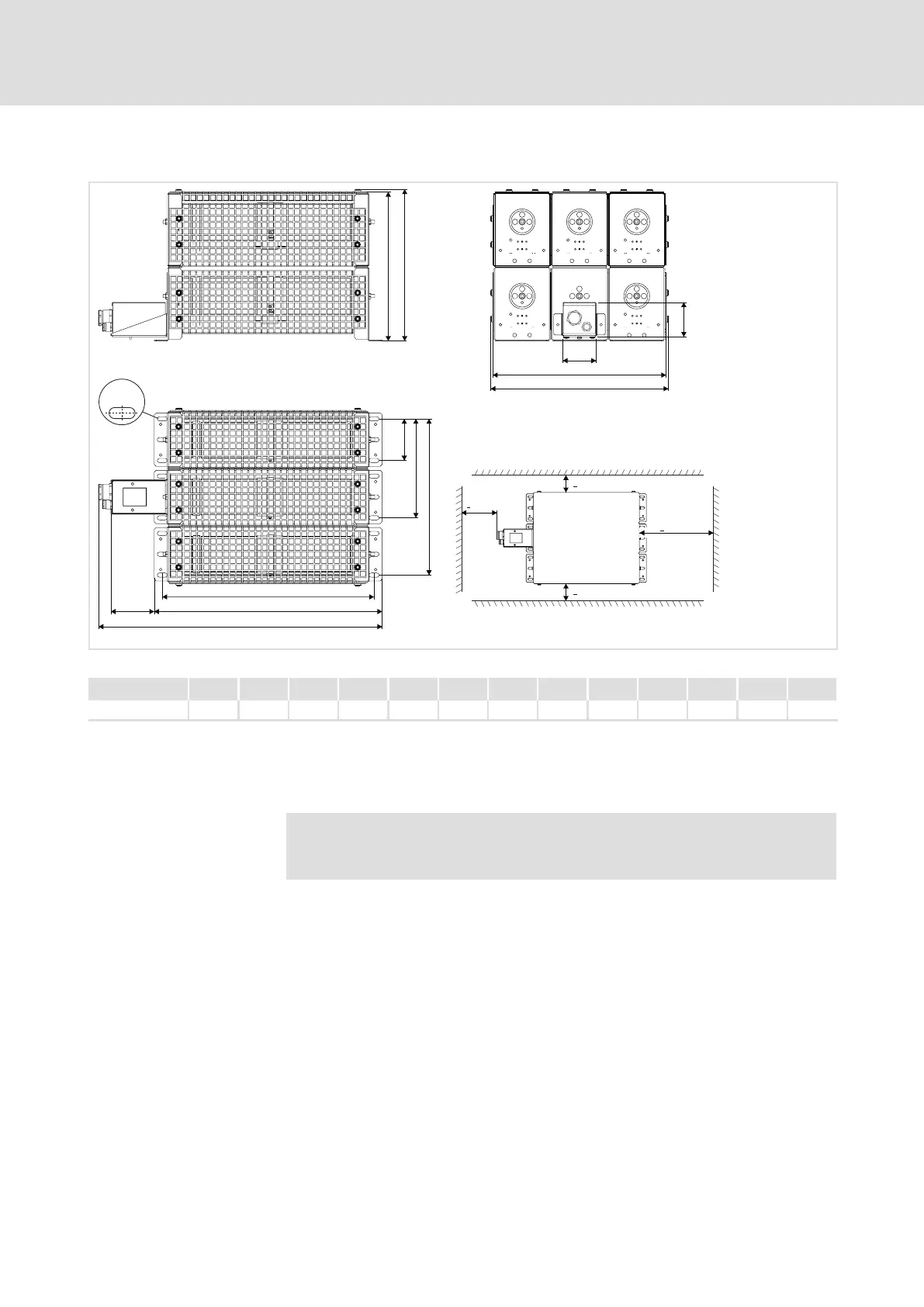

Fig. 12.2−1 Dimensions of the ERBD015R04K0 brake resistor
Type a a1 a2 a3 a4 b b1 c c1 c2 c3 e e1
ERBD015R04K0 273 266 240 152 64 233 229 640 550 526 66.5 51 53
All values in [mm]
12.2.3 Selection
 Stop!
The value must not fall below the lowest permissible resistance.
Connect several brake resistors of type ERBD015R04K0 in parallel to get the
brake resistance that matches your application.
The number of resistors to be connected in parallel is calculated with 1/4 x
of the required continuous power (round the result).
