Control terminals
Connection terminal of the control card
5.6
5.6.2

5.6−3
EDSVF9383V EN 7.1−04/2012
5.6.2 Connection terminal of the control card
5
1
5
1
1
5
E2E4E5391
34
28E1E32
33 7K32 62K31
GNDA1A2A3A4ST1ST25934763
LO HI

X4
X3
X1
X11
X8
X9
X10
X5
X6
9300VEC001

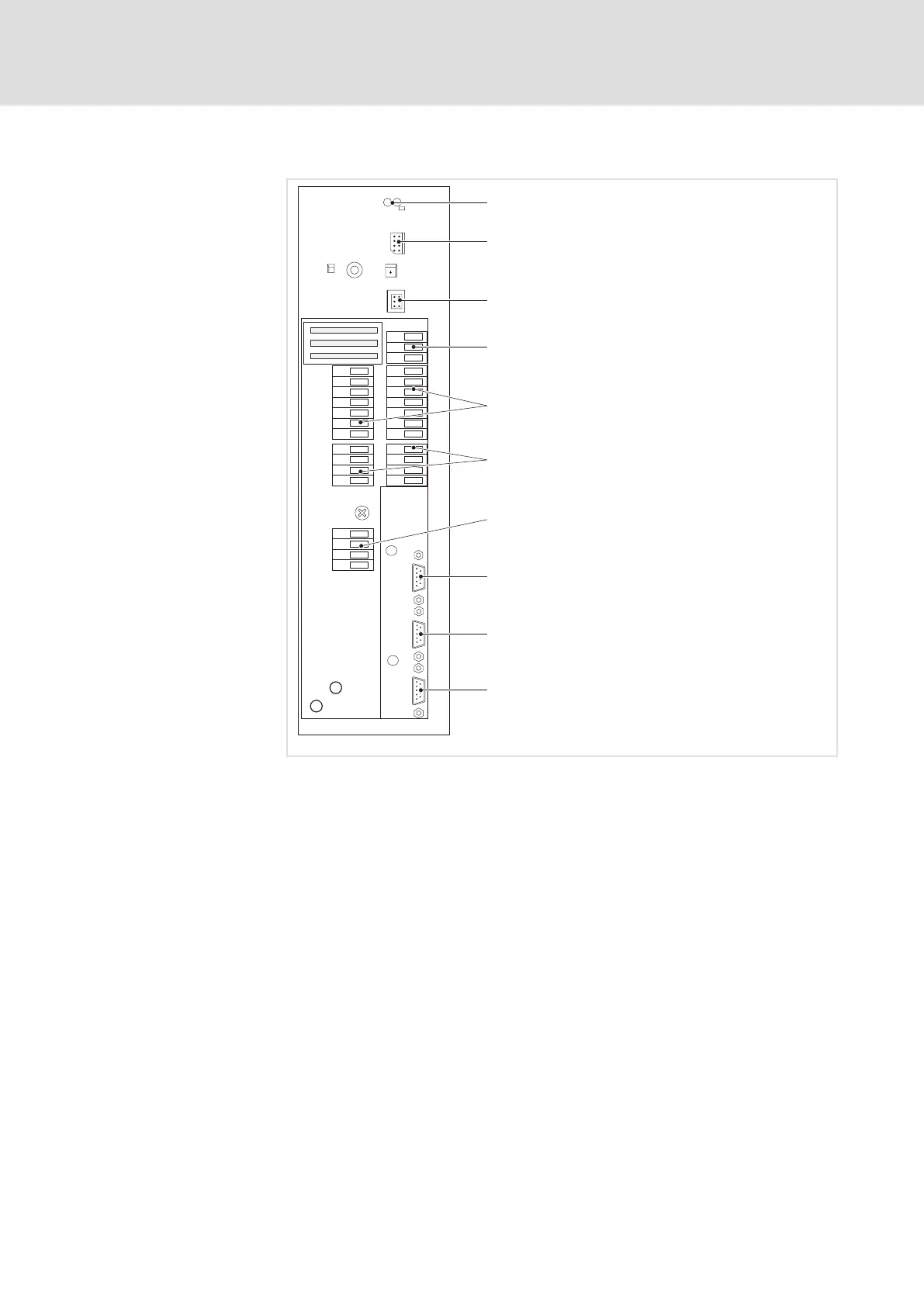

Fig. 5.6−2 Connection terminal of the control card
 2 light−emitting diodes (red, green) for status display
X1 Automation interface (AIF)
Slot for communication modules (e.g. keypad XT)
X3 Preselection of signal type with jumper for input signal at X6/1, X6/2
X4 Connection for system bus (CAN), terminal strip
X5 Connection for digital inputs and outputs, terminal strips
X6 Connection for analog inputs and outputs, terminal strips
X8 Connection for incremental encoder
connector: male, 9−pole, Sub−D
X9 Connection for digital frequency input signal
connector: male, 9−pole, Sub−D
X10 Connection for digital frequency output signal
connector: female, 9−pole, Sub−D
X11 Connection for safety relay K
SR
, terminal strip
