Installing of the standard device
Basic devices in the power range 110 ... 200 kW
Fasten controller on mounting plate
4
4.2
4.2.4
4.2−4
EDSVF9383V EN 7.1−04/2012
4.2.4 Fasten controller on mounting plate
Danger!
Risk of injury due to the high weight of the controller.
The controller has to be carried using the eyebolts and an
adequate lifting tool.
1
2
0
4
3
4
3
9300vec070

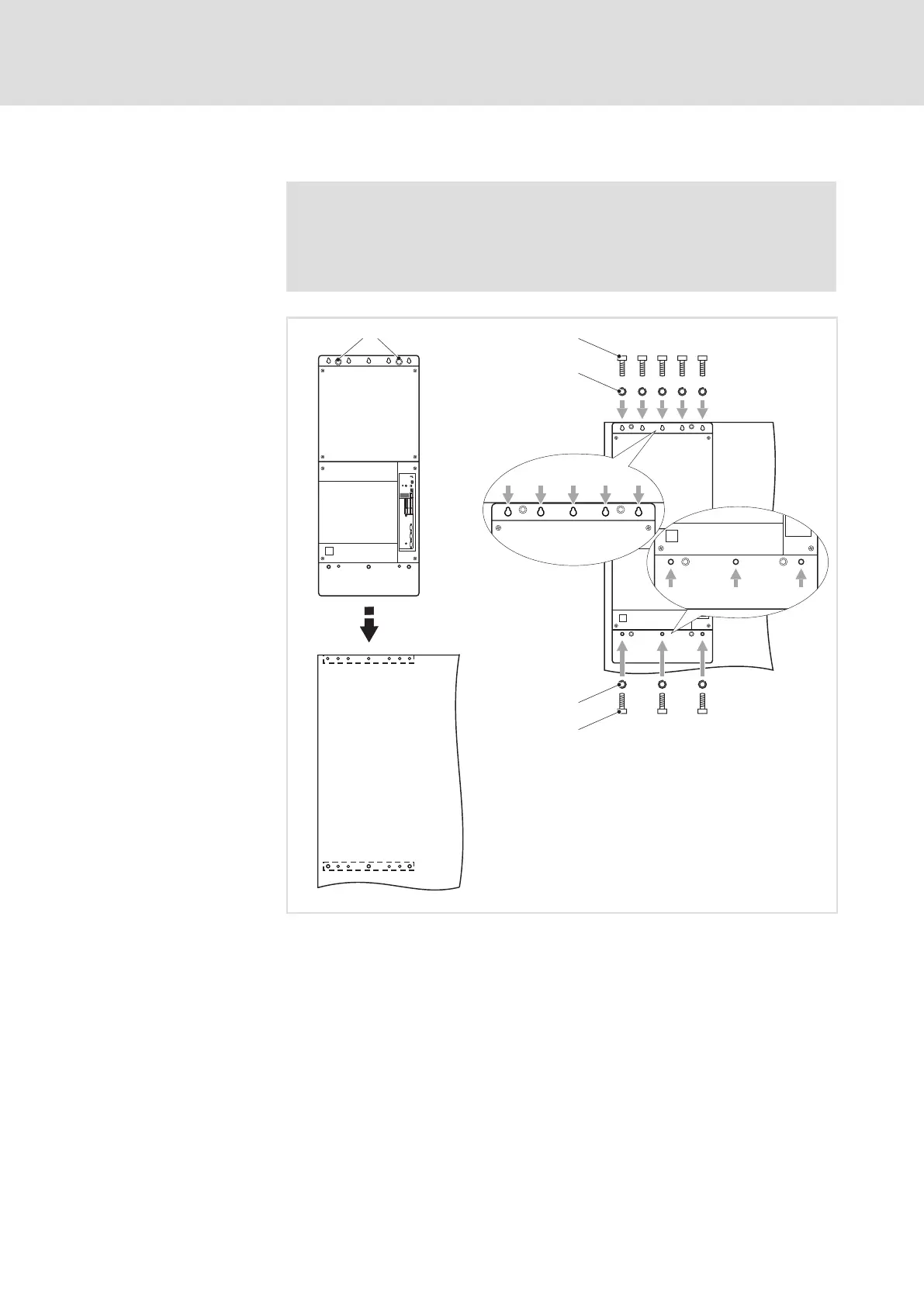

Fig. 4.2−4 Fastening the controller on mounting plate
Eye bolts 8 hexagon socket screws M8 × 25 mm
Controller 8 spring washers M8
Mounting plate
1. Put the controller on the mounting plate.
2. Fasten the controller exactly at the illustrated points using 5 hexagon
socket screws and spring washers at the top and 3 hexagon socket
screws and spring washers at the bottom.
