Basic devices in the power range 250 ... 400 kW
Master and slave connection
5.5
5.5.2
5.5−3
EDSVF9383V EN 7.1−04/2012
5.5.2 Master and slave connection
Danger!
Danger of personal injury! Destruction of the controller!
Damaged control cables in the controller (master and slave) may
cause a faulty control of the output stage.
Possible consequences:
ƒ When switching on the mains voltage, high energies may
discharge like an explosion.
ƒ Explosive noises may damage your hearing. A shock by an
unexpected and loud explosion may cause distress.
ƒ The controller will be destroyed.
Protective measures:
ƒ When working with the DC busbars, make sure that you do
not damage any internal connectors and cables.
ƒ Before attaching the cover again:
– Check all plugs selected in Fig. 5.5−5 for damage and correct
fit.
– Check all cables involved for damages.
– If the plugs do not fit correctly, or the plugs or cables are
damaged, commissioning is prohibited. Contact the Lenze
service.
0 1
9300vec164

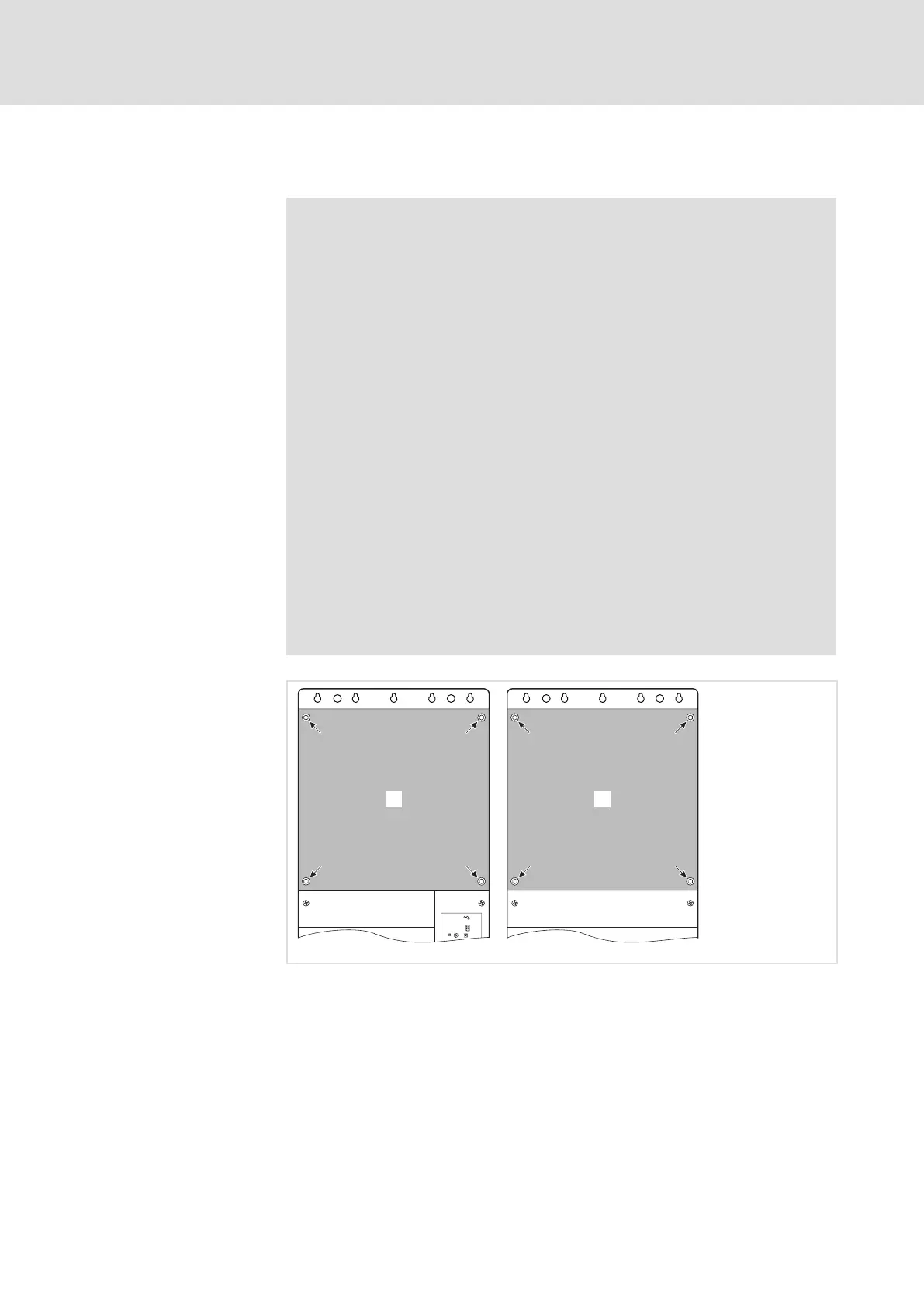

Fig. 5.5−2 Fastening the covers to the master and slave
ƒ Remove the upper cover from the master and the slave to access
the power sections. Each cover is fastened with 4 screws.
Important notes
Preliminary work
