Basic devices in the power range 250 ... 400 kW
Master and slave connection
5.5
5.5.2
5.5−6
EDSVF9383V EN 7.1−04/2012
9300vec163

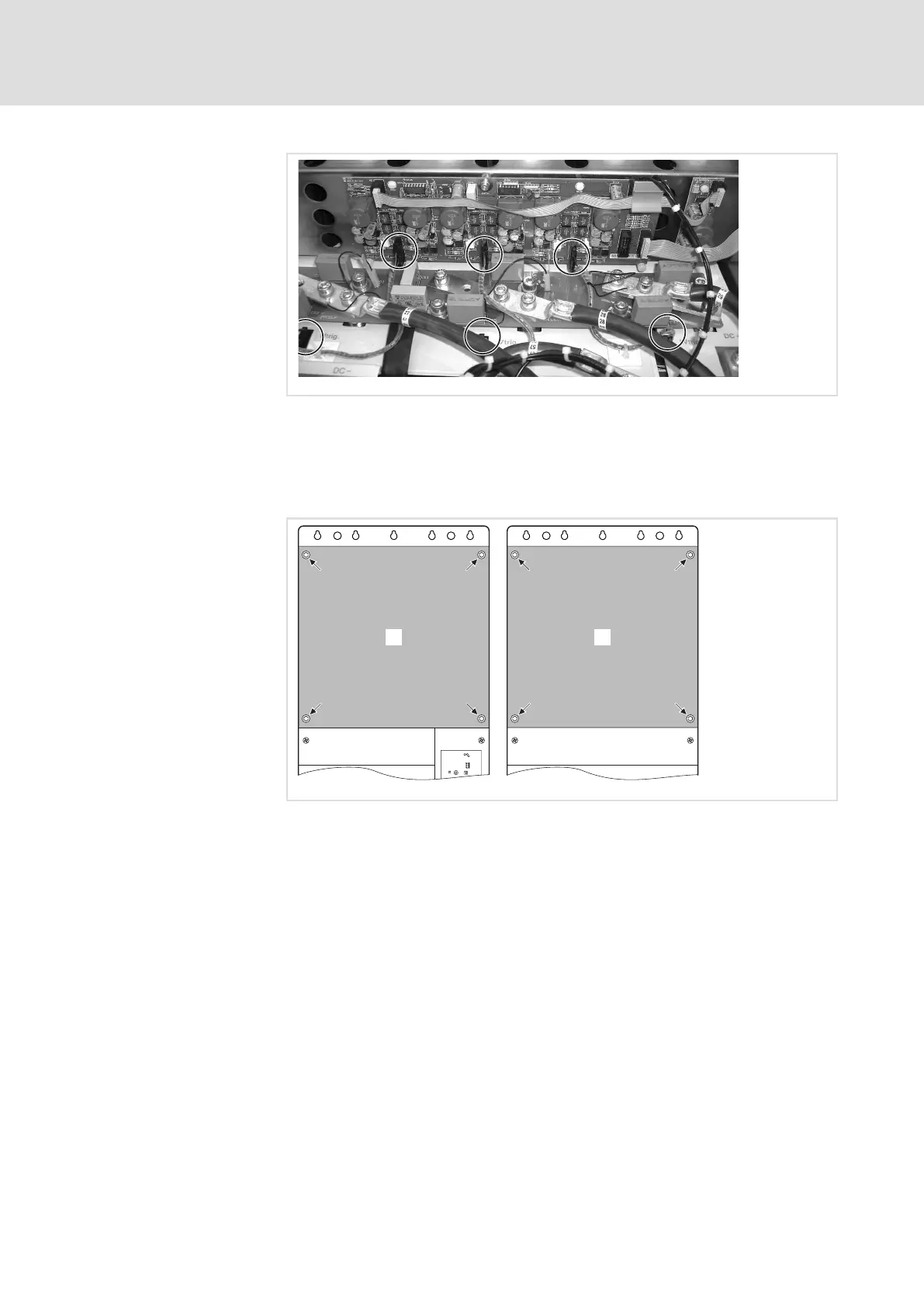

Fig. 5.5−5 Control cables in the master and slave
1. Check the control cables (plugs and cables) for correct fit and possible
damages. ()
– If the plugs do not fit correctly, or the plugs or cables are damaged,
commissioning is prohibited. Contact the Lenze service.
0 1
9300vec164
Fig. 5.5−6 Fastening the covers to the master and slave
2. Close the housings using the covers . Fasten the covers with
4 screws each.
