Installing of the standard device
Basic devices in the power range 250 ... 400 kW
Fasten the mounting rails on the mounting plate
4
4.3
4.3.3
4.3−3
EDSVF9383V EN 7.1−04/2012
4.3.3 Fasten the mounting rails on the mounting plate
1
33
22
22
33
0
0
9300vec080

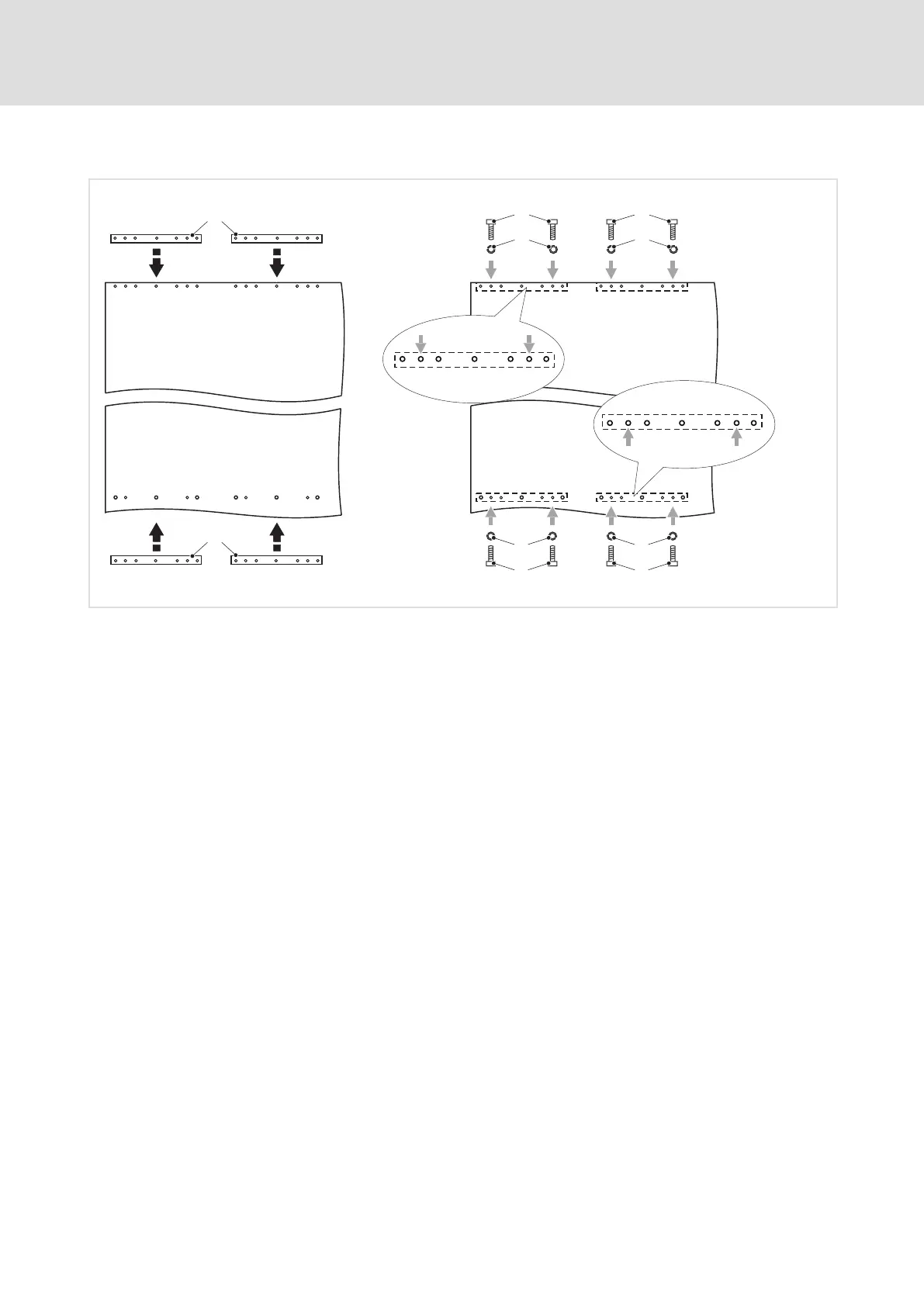

Fig. 4.3−3 Fastening the mounting rails on the mounting plate
Mounting rail
Mounting plate
Hexagon socket screw M8 × 25 mm
Spring washer M8
1. Hold the mounting rails behind the mounting plate.
2. Fasten the mounting rails exactly at the illustrated points using 2
hexagon socket screws and spring washers on each side.
