Basic devices in the power range 250 ... 400 kW
Fan connection 400/500 V devices
5.5
5.5.6
5.5−9
EDSVF9383V EN 7.1−04/2012
Danger!
When the fan is externally supplied with voltage, the terminal L2
carries dangerous mains voltage!
When the controller is supplied via the DC bus, the fan must be separately
supplied with mains voltage (see ). In this case, the bridge between the
terminals 102 and 103 must be removed (see ).

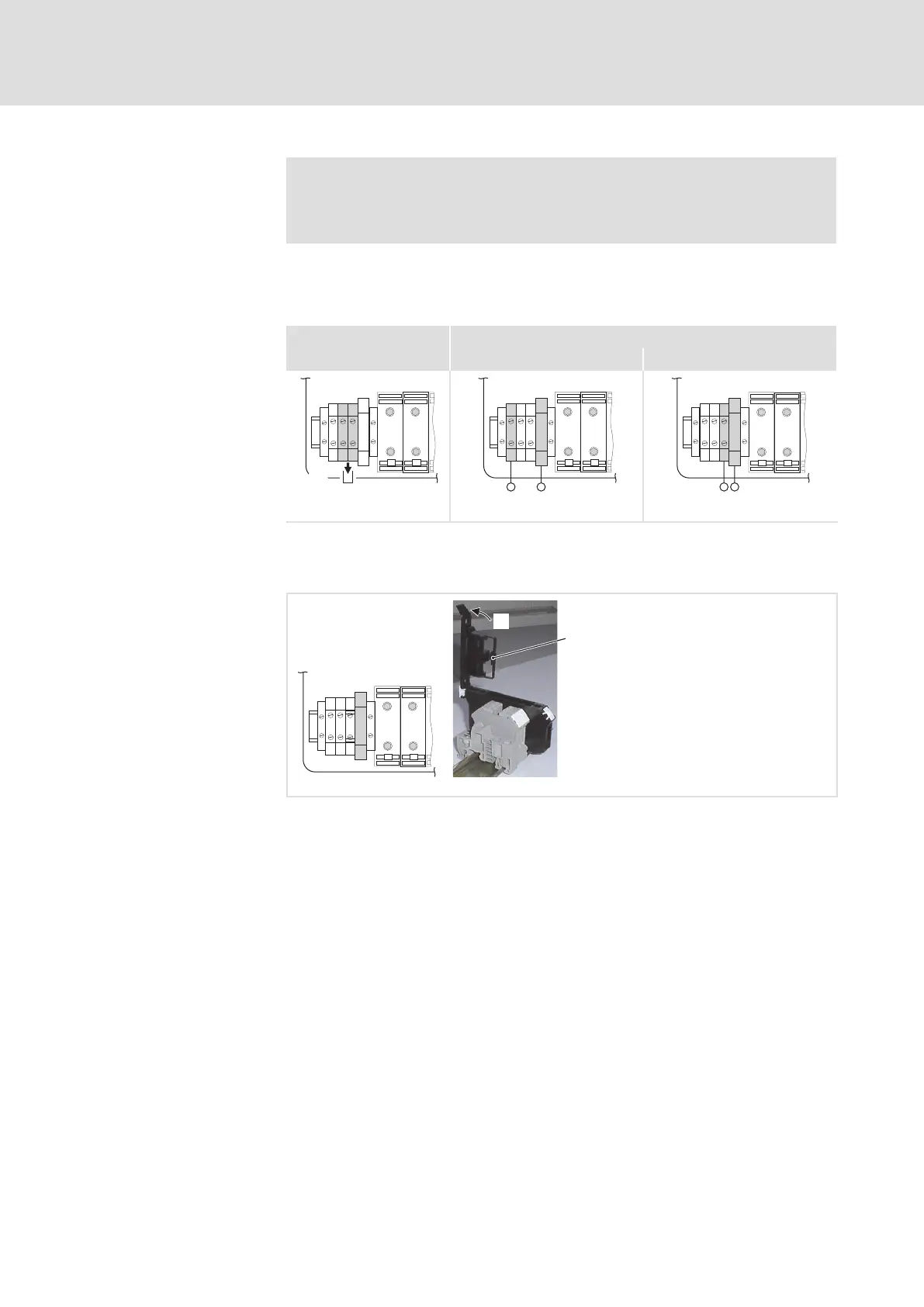

Remove bridge
Mains connection for the operation of the fan on
AC 340 ... 440 V AC 440 ... 577 V
101
102
103
104
}
0
L1 L2
AC 340 … 440 V
101
102
103
104
1
L1 L2
AC 440 … 577 V
101
102
103
104
1
L1 L2
9300vec160 9300vec046 9300vec047
In case of an external voltage supply the fan is protected by a fuse integrated
in terminal 104.
101
102
103
104
L1 L2
0
1
9300vec161
Fig. 5.5−10 Fusing of the fan
Open the fuse holder.
Remove the defect fuse from the support and replace it by the following
type:
Type: 500V SA 2A 6.32
Ref. no.: P098131
Manufacturer: Ferraz Shawmut
Fan connection when
controller is supplied via the
DC bus
Exchange defect fuse
