Device description
Leuze electronic GmbH + Co. KG BPS 348i 19
An entry wizard is available for special bar code tapes on the Leuze website under devices BPS300 - Ac-
cessories tab. The entry wizard provides support when entering the individual pieces of tape data and cre-
ates a query or order form with the correct part number and type designation.
NOTICE
Only one BCB type per system!
Ä In a given system, use either only BCBG30… with 30mm grid or only BCBG40… with
40mm grid.
If different BCBG30… or BCBG40… models are used in one system, the BPS cannot en-
sure an exact position determination.
NOTICE
Configure the BPS for the used BCB type!
Ä The used BCB type must be set in the BPS configuration with the Tape selection parameter
(see chapter 8.4.2 "DAPmodule– permanently defined parameters").
Ä On delivery, the BPS is set for BCBG40… with a 40mm grid.
If the BCBG30… with a 30mm grid is used, the Tape selection must be adjusted in the
BPS configuration.
Ä If the used BCB type does not correspond to the Tape selection configured in the BPS, ex-
act position determination cannot be performed by the BPS.

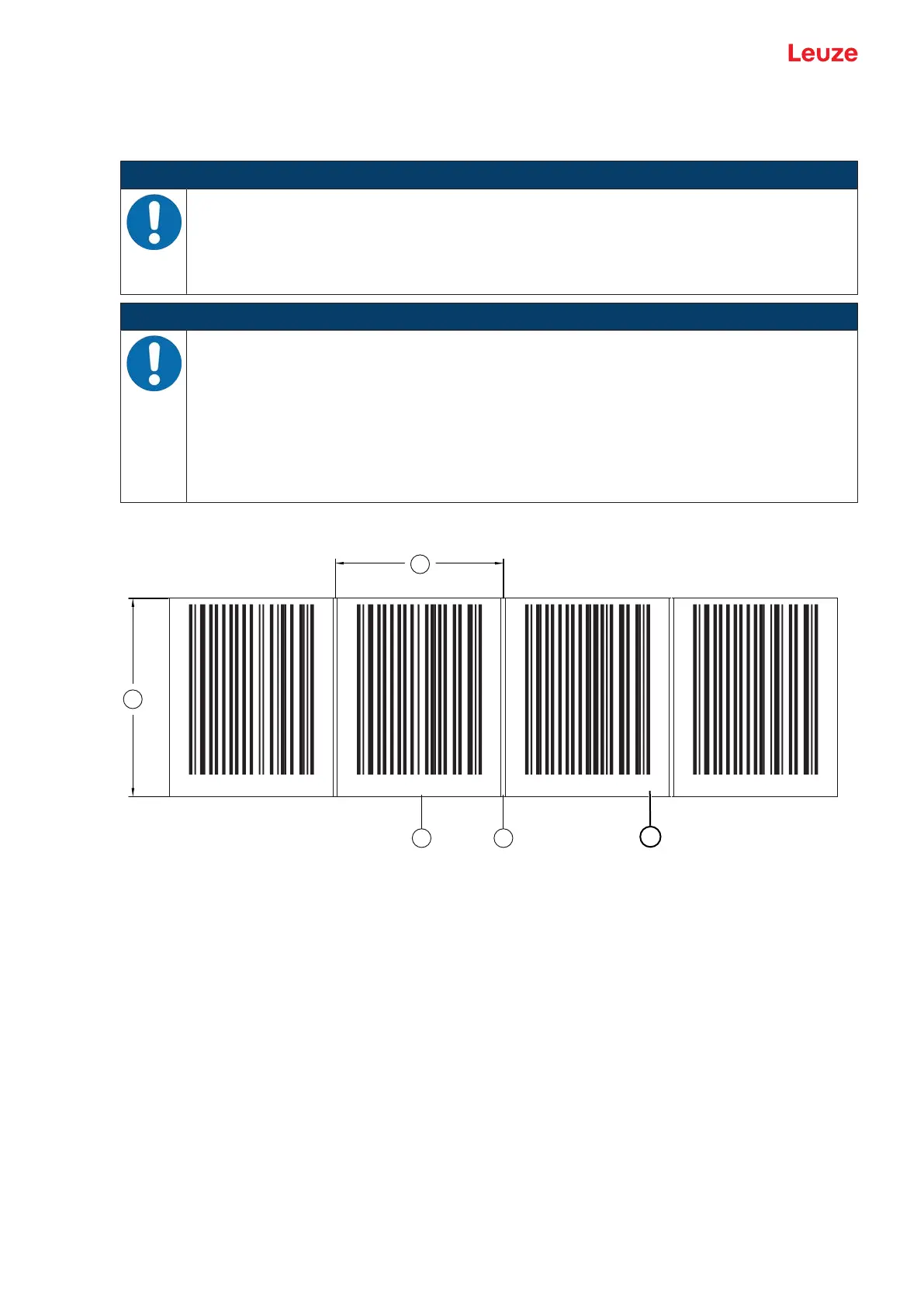

BCBG40… barcode tape with 40mm grid
1 2
000040 000044 000048 000052
3
4
G40LeuzeG40LeuzeG40LeuzeG40Leuze
5
1 Position label with position value
2 Cut mark
3 Grid dimension = 40mm
4 Height
Standard heights: 47mm and 25mm
5 G40 = designation in plain-text for 40mm grid
Fig.3.10: BCBG40… barcode tape with 40mm grid
