LevelOne DSS-1000 - Chapter 4: Installation and Maintenance; How to Surface Mount

DSS-1000 User Manual
Chapter 4:
Installation and Maintenance
This chapter describes the different ways to install DSS-1000:
 Surface Mount

 VESA Mount

 Pole Mount
4.1 How to Surface Mount?
DSS-1000 can be mounted on a straight wall or on a table or pedestal. For wall installation, it
is recommended to install DSS-1000 with the HDMI and Composite connectors facing down.

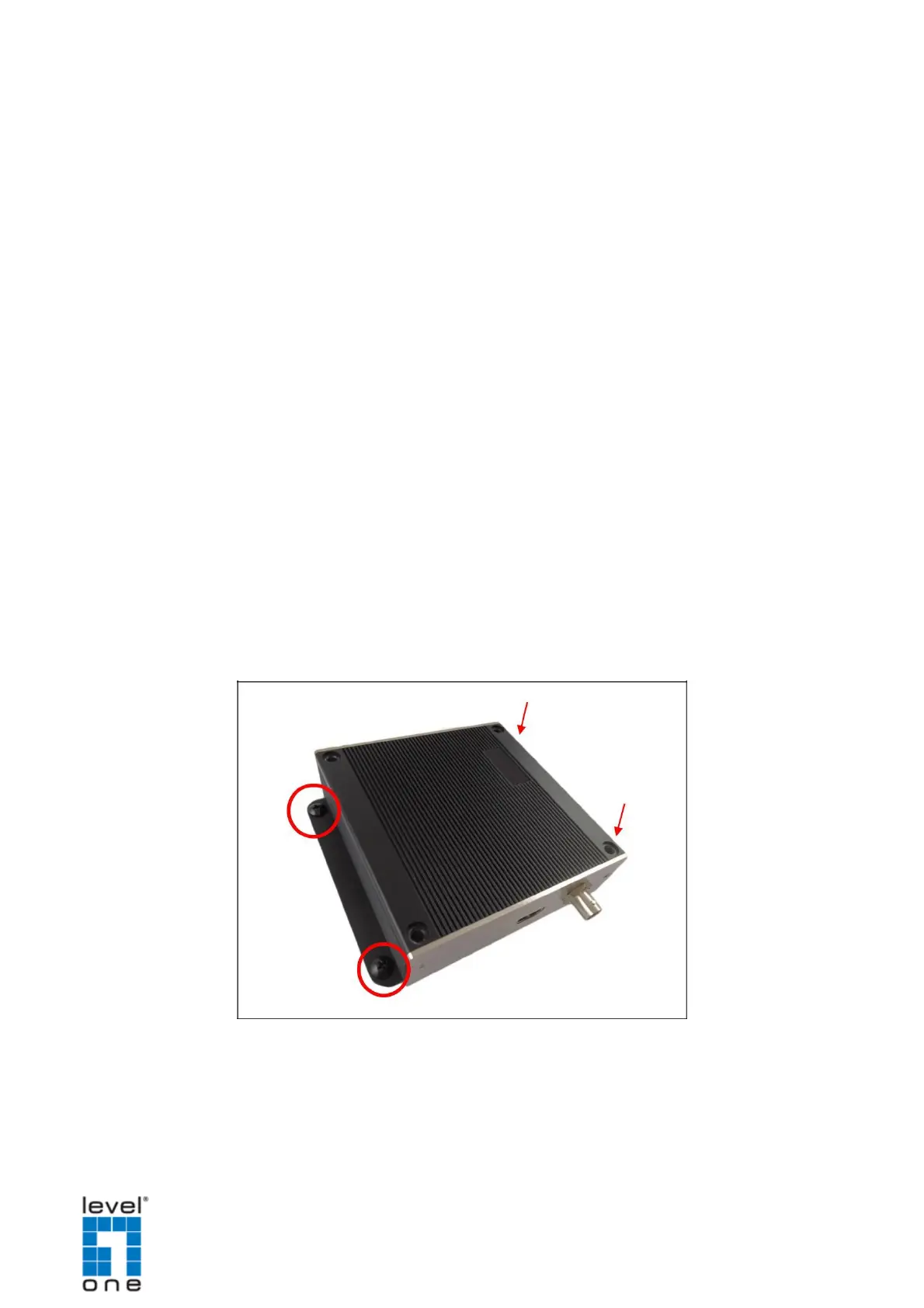

1. Mark the 4 screw holes on the surface.
2. If necessary, drill the holes and insert the plastic plugs.
3. Attach the 4 supplied screws to secure the device.
