Lexmark X422 - Page 114

Replacing the pick roller assembly and the separator pick roller
114
Maintenance

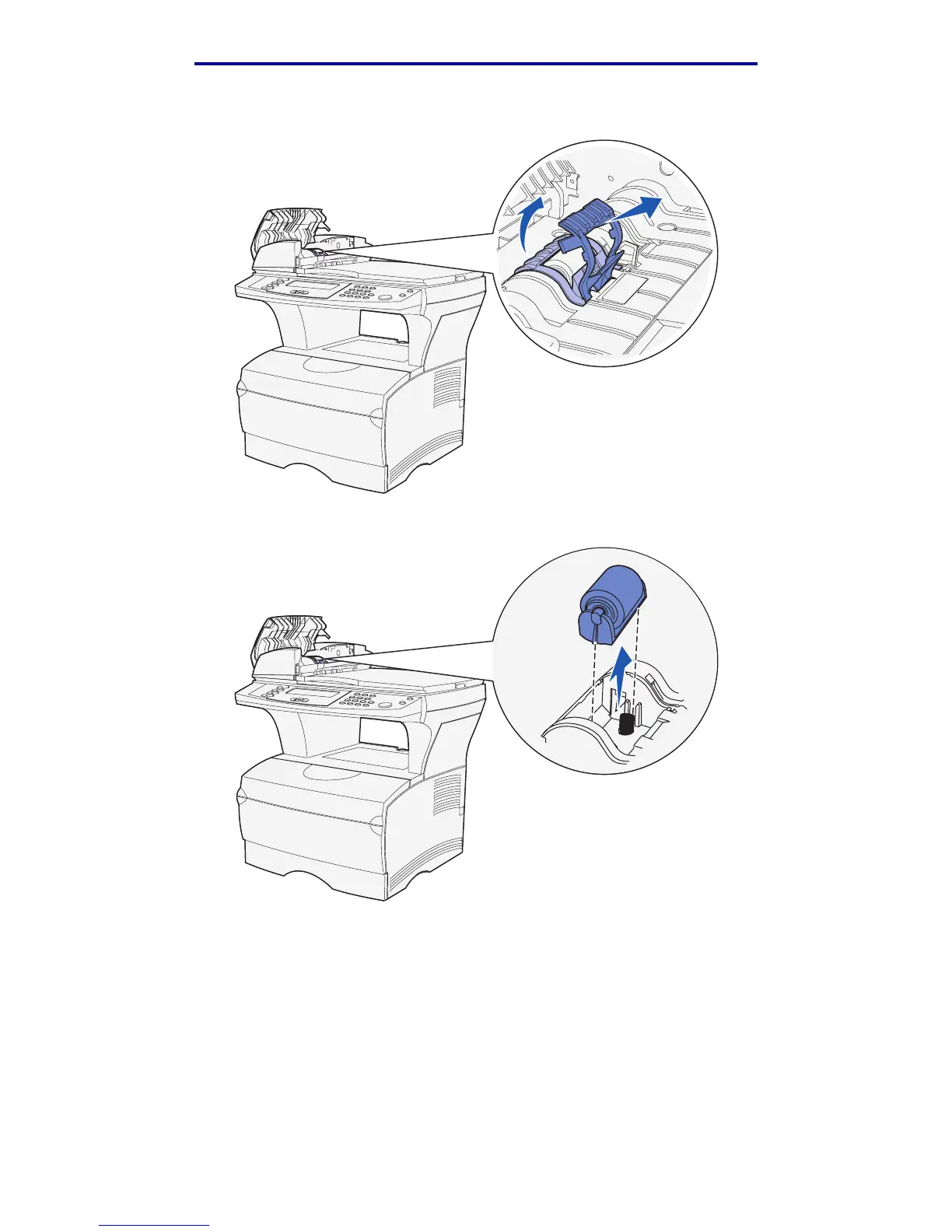

7 Lift it up and back. The cover comes completely off. Set it aside.
8 Lift the used separator pick roller straight up and out. Dispose of it properly.
9 Remove any packaging from the new separator pick roller.
