Lexmark X46X Series Service Manual

Diagnostic aids 3-43
7014-xxx
Understanding jam numbers and locations

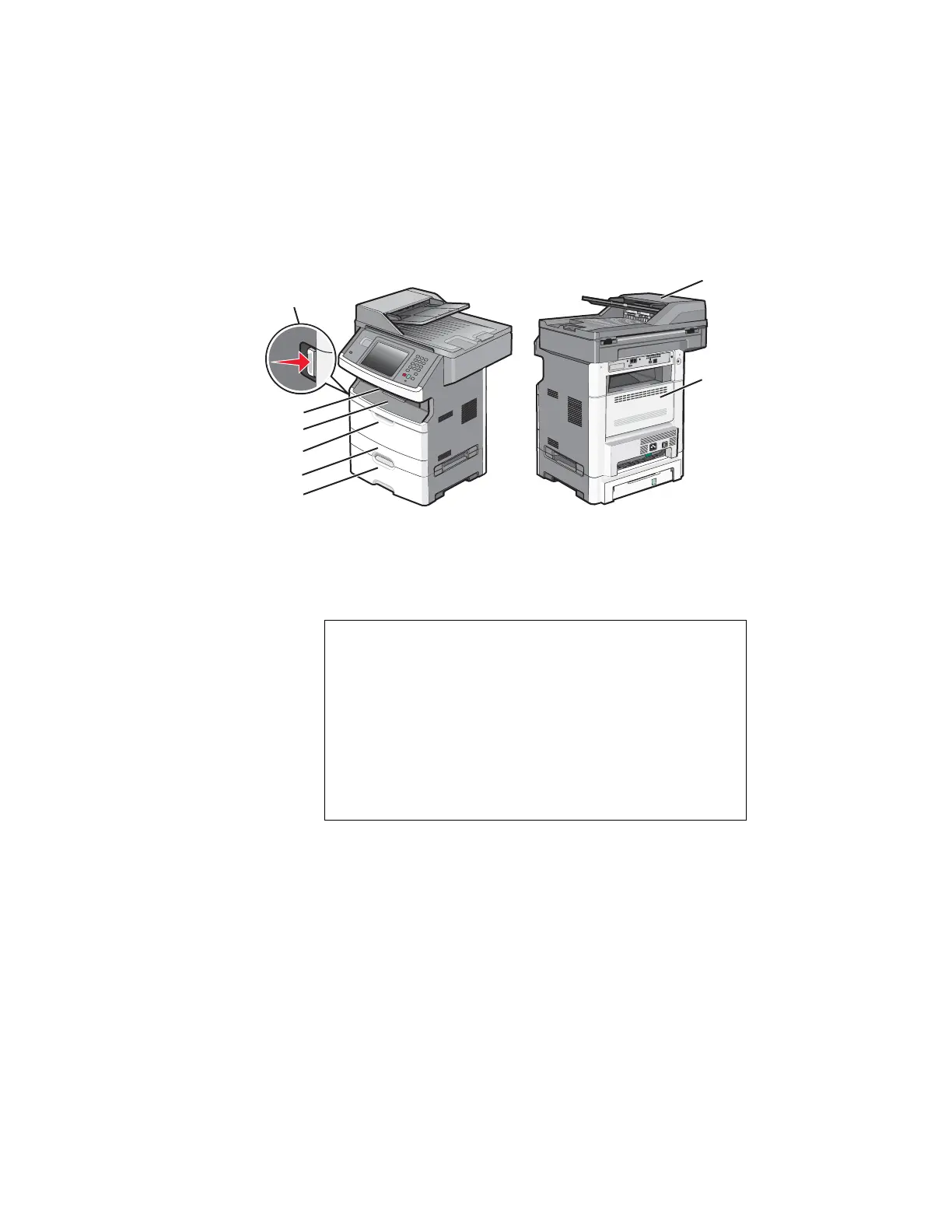

The following illustration shows the areas of the MFP where jams occur. When paper jams occur, follw the
instructions in this section.
Jam area
number
Description
1 Opened front door
2 Paper output bin
3 Front door
4 Multi purpose feeder
5Tray 1
6Tray 2
7 Rear door
8 Automatic document feeder (ADF)
3
1
4
5
6
2
7
8
