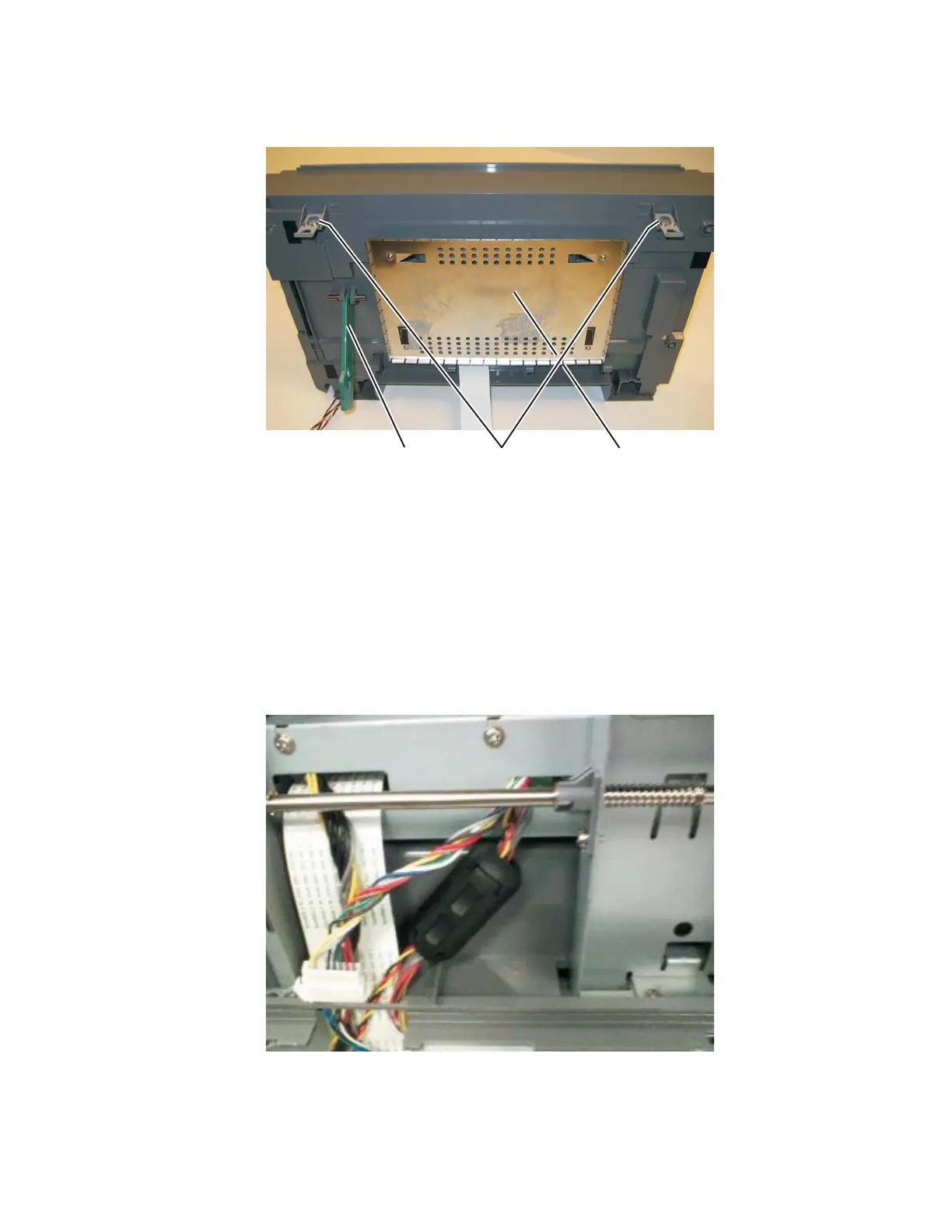

13. Remove the kickstand (B).
14. Remove the two flatbed supports (C). These will be used on the new flatbed.
15. Remove the controller shield (D). This will be used on the new flatbed.
Scanner assembly removal
1. Remove the left scanner cover. See “Left scanner cover removal” on page 4-103.
2. Remove the right scanner cover. See “Right scanner cover removal” on page 4-104.
3. Remove the left side cover. See “Left side cover removal” on page 4-33.
4. Remove the right side cover. See “Right side cover removal” on page 4-80.
5. Lift the flatbed and ADF assemblies to the up position.
6. Remove the controller board shield. See “Controller board shield” on page 4-11.
7. Remove the toroid from the printhead cable and door interlock switch cable.
8. Disconnect the HVPS cable from connector J37 on the controller board.
9. Disconnect the front cover interlock switch cable from connector J11 on the controller board.
10. Discronnect the stairway cables from J500 and J501 on the engine board.
