Lexmark X46X Series Service Manual

Repair information 4-67
7014-xxx
UICC cable removal

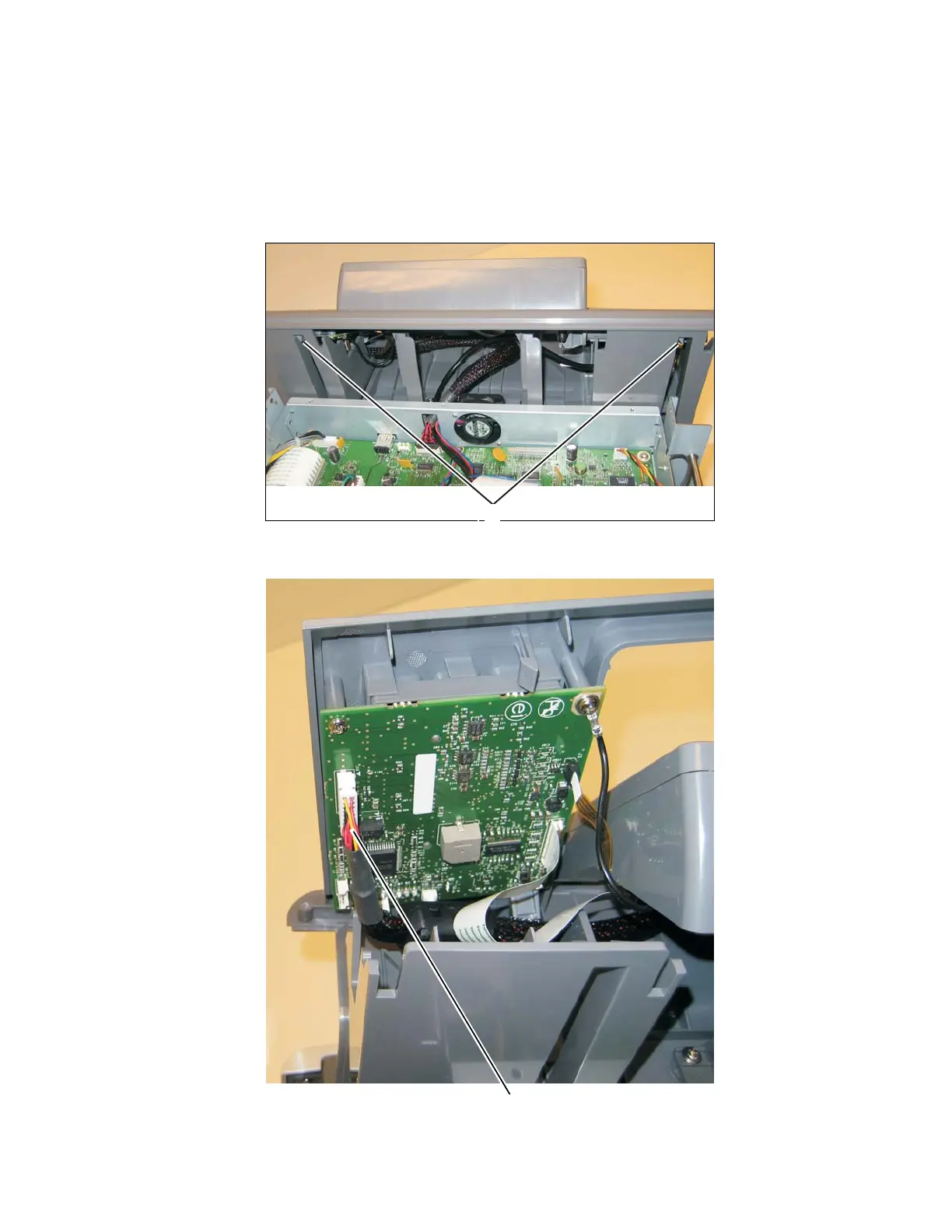

1. Lift the scanner assembly to the up position.
2. Disconnect the UICC cable from the controller board.
3. Feed the cable through the hole in the front of the controller card cage.
4. Release the two tabs (A) securing the keypad to the keypad to the tub assembly.
5. Disconnect the UICC cable B) from the operator panel PCB assembly.
