Repair information 4-37
7014-xxx
LVPS/HVPS removal
1. Remove the rear cover. See “Rear door and lower rear cover removal” on page 4-77.
2. Remove the left side cover. See “Left side cover removal” on page 4-33.
3. Place the printer on its top with the rear facing you.
Note: Be careful to not mar the finish of the printer.

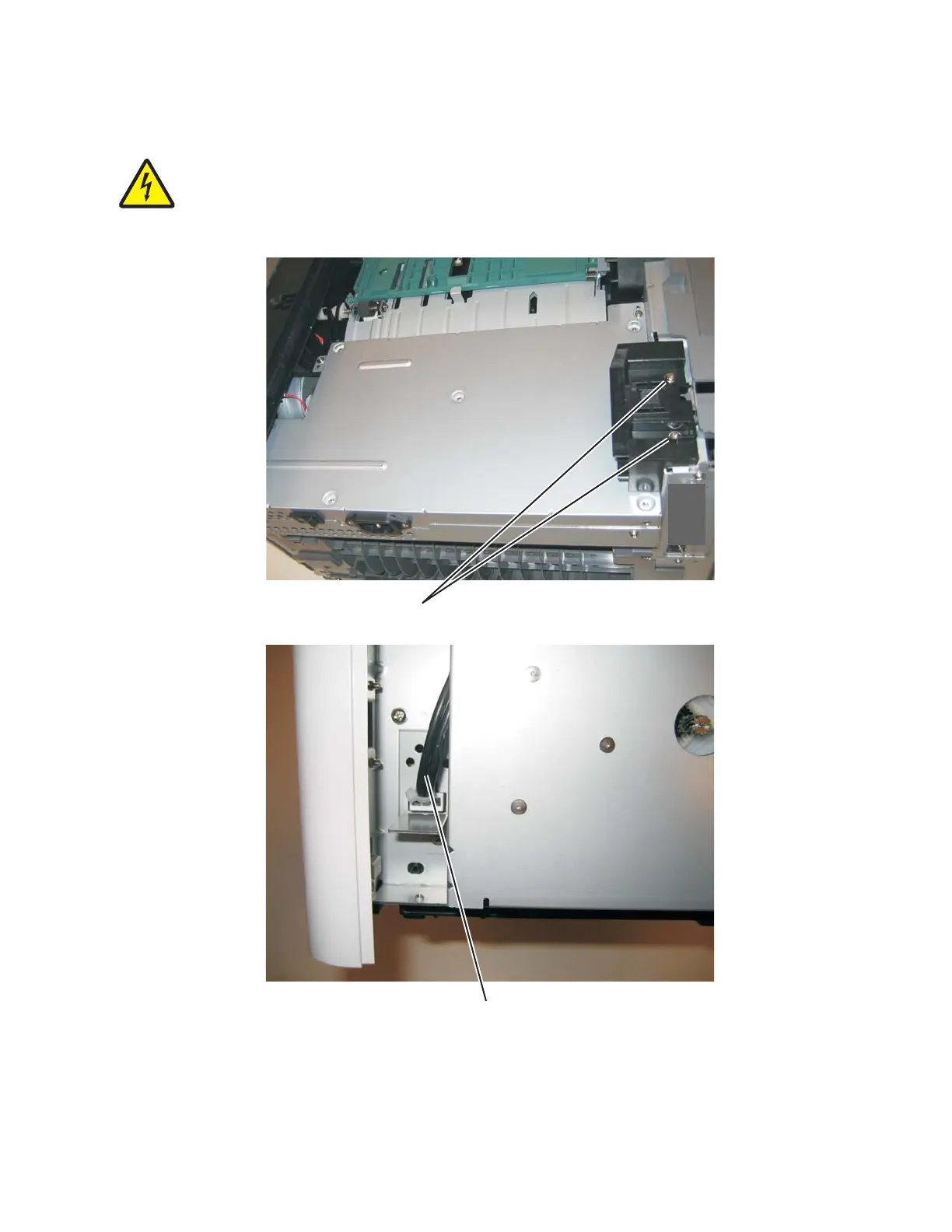

4. Remove the two screws (A) from the right rear foot assembly.
5. Disconnect the fuser power cable (B).
