Lexmark X46X Series Service Manual

Repair information 4-105
7014-xxx
Option board installs and removals
Note: This information is also available in the X 46x series user guide.

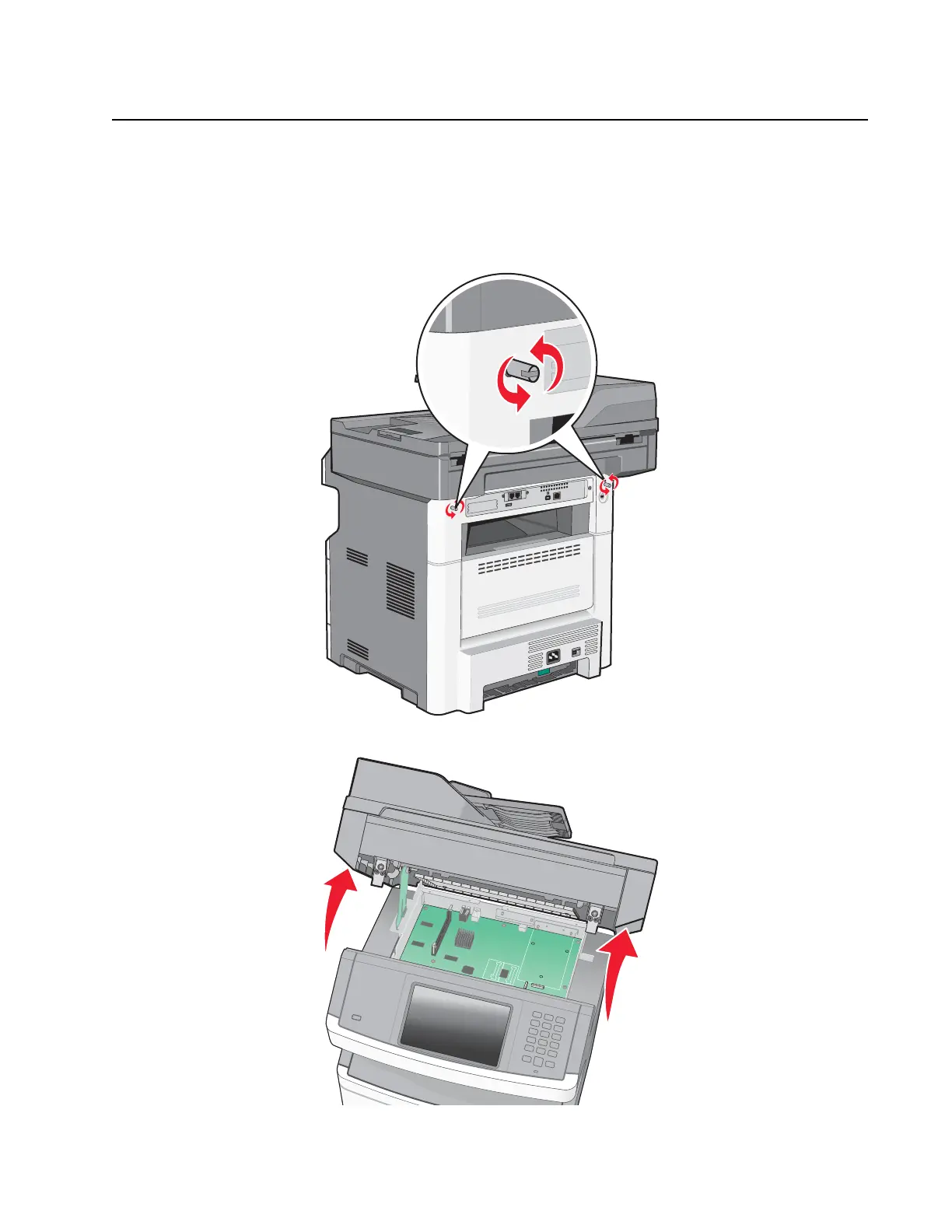

Lifting the Scanner to the up position
1. Turn the two rear frame assembly locks counter-clockwise to the unlock position.
2. Lift the scanner assembly to the up position. The kickstand will lock into place.
