4-106
7014-xxx
Installing an Internal Solutions Port (ISP)
1. Access the controller board. See “Lifting the Scanner to the up position” on page 4-105.
2. Unpack the ISP and tee.
Note: Avoid touching components on the card.

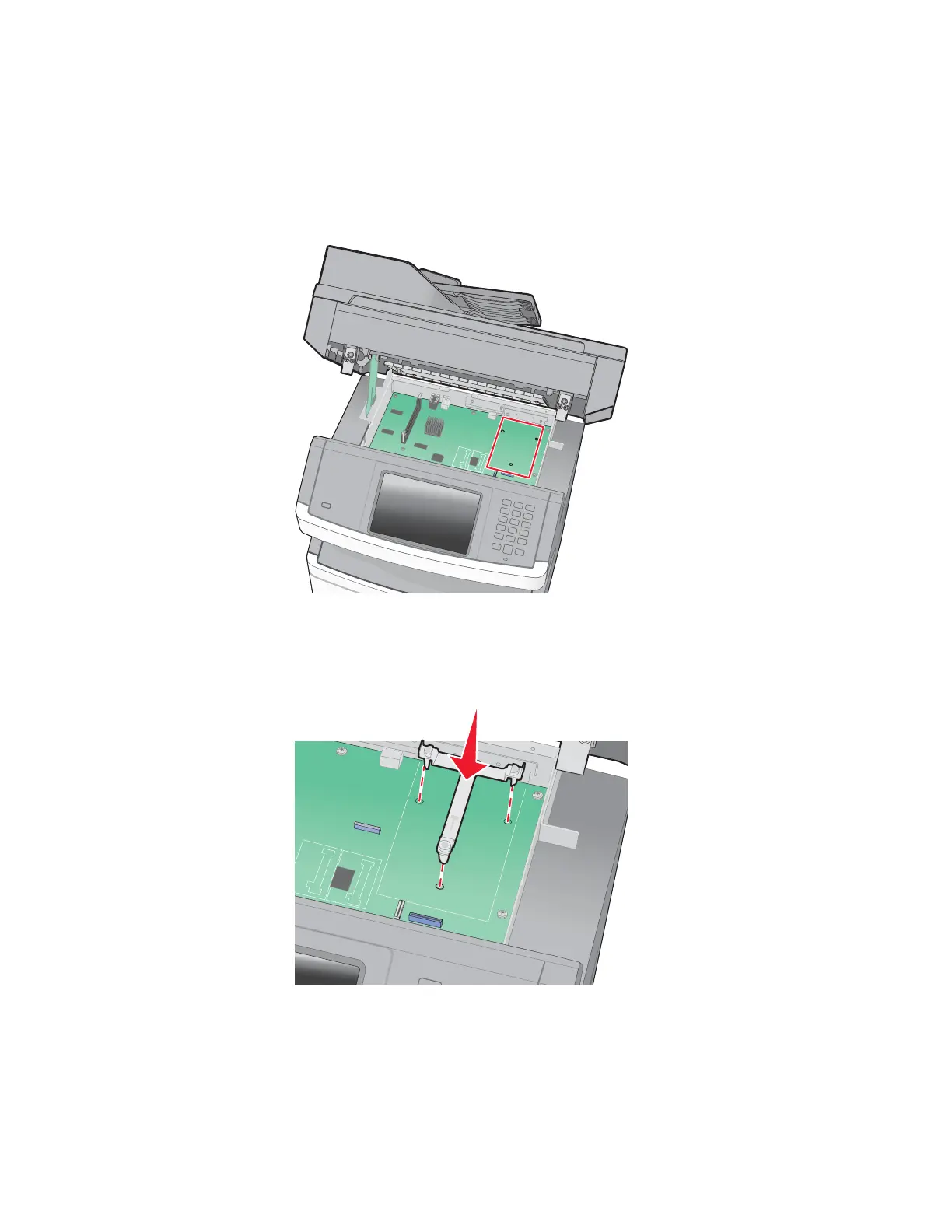

3. Locate the standoff location on the controller board.
Note: If an optional printer hard disk is currently installed, then the printer hard disk must first be removed.
See “Printer hard disk removal” on page 4-109.
4. Remove the metal cover from the ISP opening in the rear of the controller board cage.
5. Align the posts of the mounting tee, and press down to secure it to the controller board.
