Lexmark X46X Series Service Manual

4-74
7014-xxx
Printhead removal
1. Remove the scanner assembly. See “Scanner assembly removal” on page 4-91.
2. Remove the top cover. See “Top cover assembly removal” on page 4-83.
3. Remove the right side cover. See “Right side cover removal” on page 4-80.

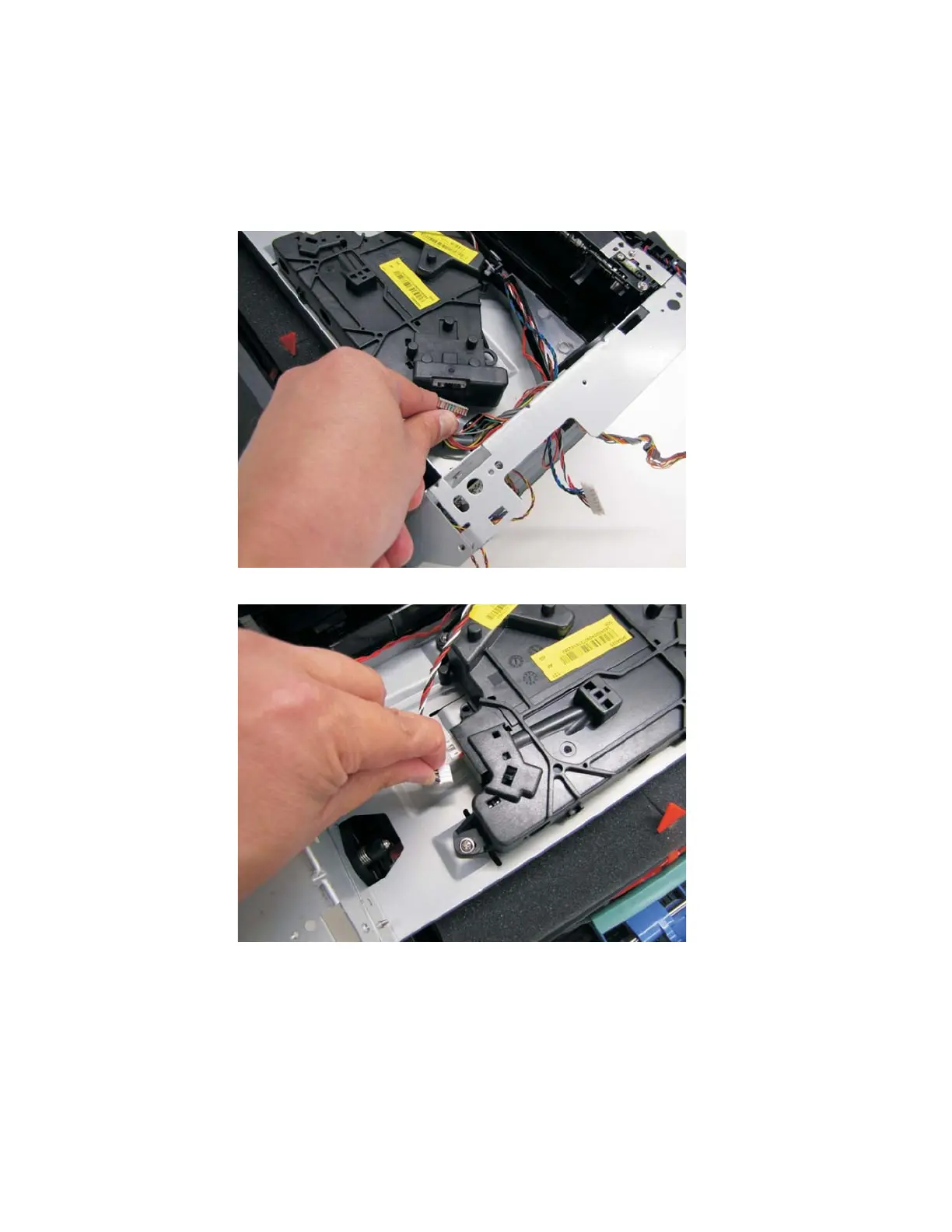

4. Disconnect the LSU cable. Use this cable with the new printhead.
5. Disconnect the HSYNC cable. Use this cable with the new printhead.
