Lexmark X46X Series Service Manual

Repair information 4-101
7014-xxx

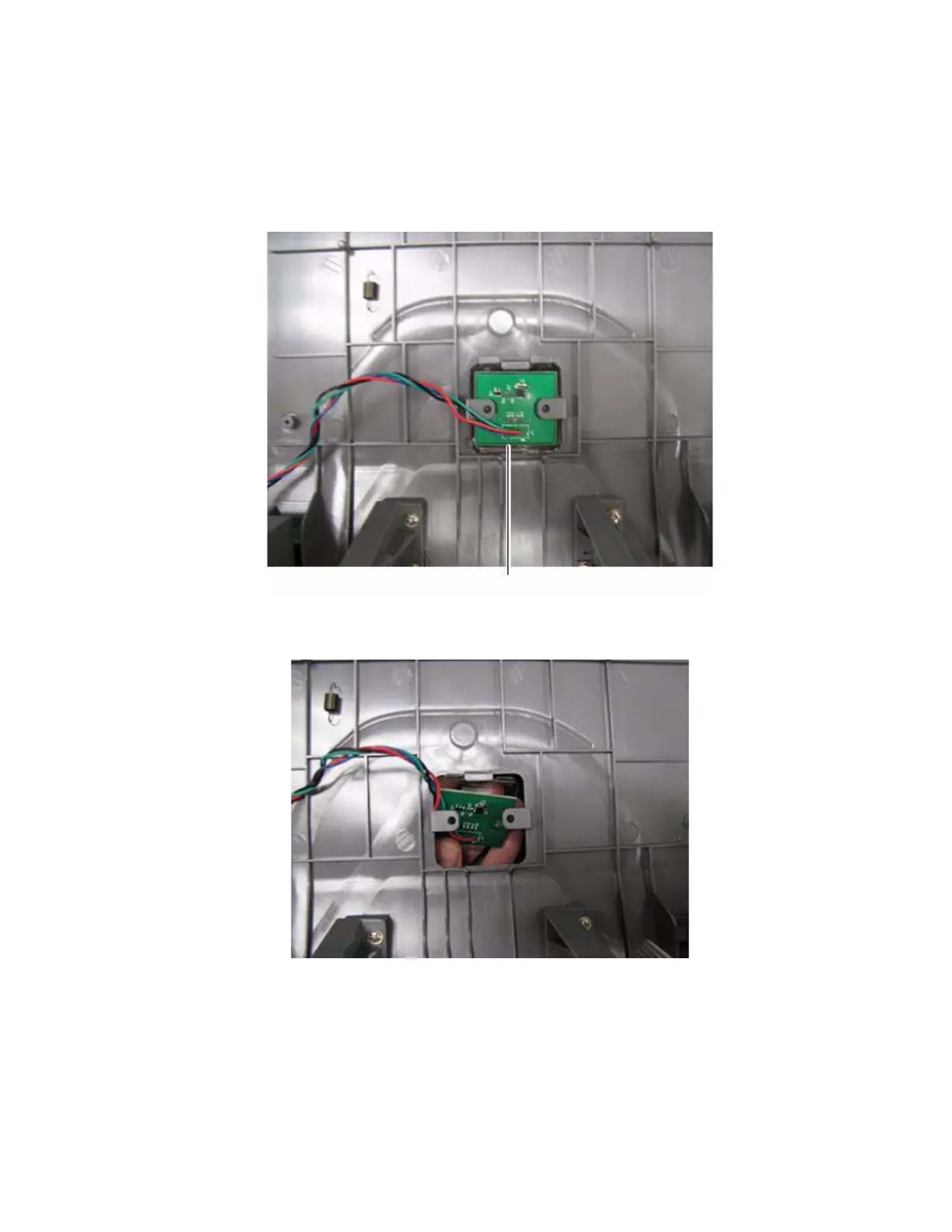

Output bin LED and lens removal
1. Disconnect the output LED cable from the controller board.
2. Remove the controller board cage. See “Controller board cage” on page 4-14.
3. Press the tab (A) securing the lens to the tub assembly.
4. Pull down on the lens and LED and remove it from the tub.
A
