Multipurpose feeder (MPF) feed clutch removal
1. Remove the left side cover. See “Left side cover removal” on page 4-33.
2. Remove the duplex. See “Duplex removal” on page 4-19.

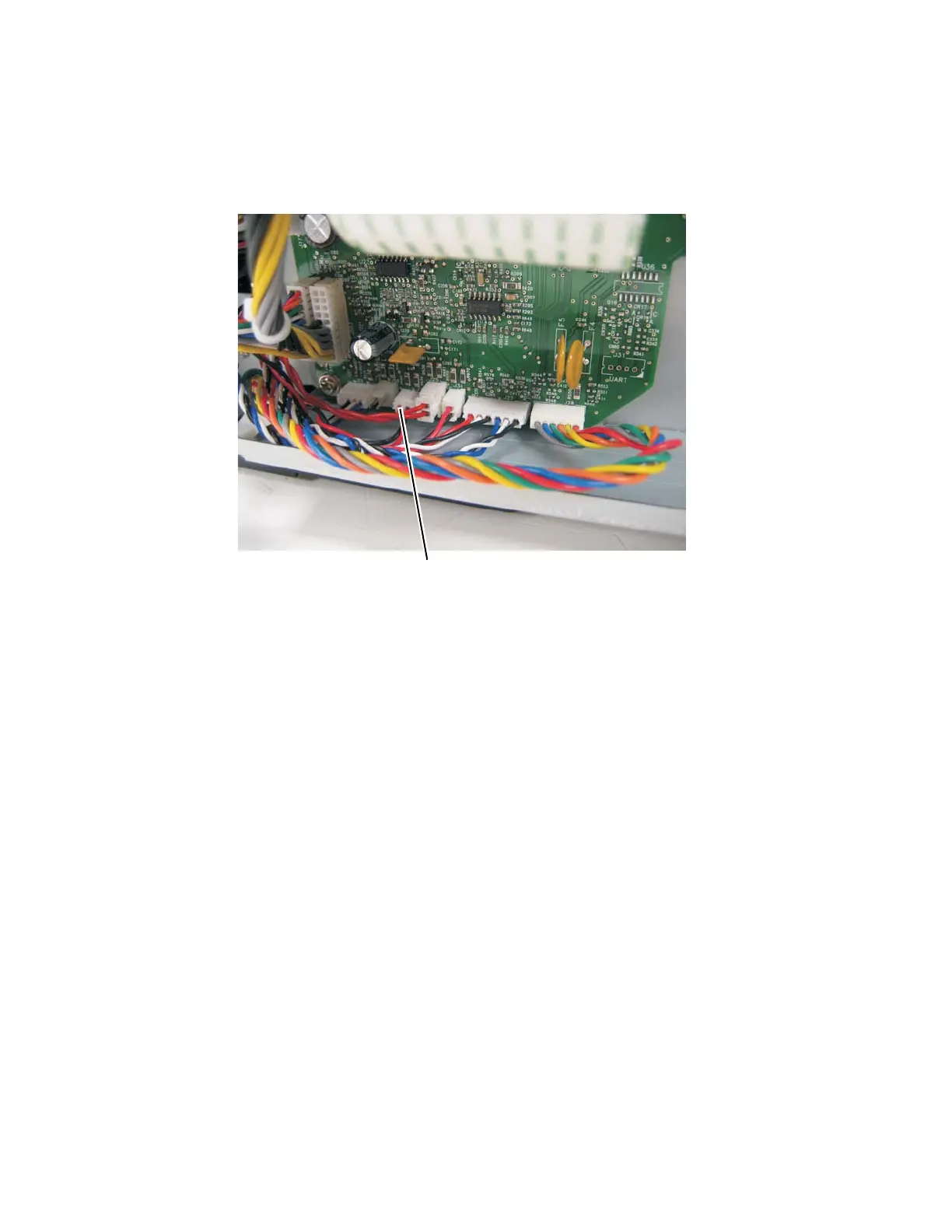

3. Disconnect the cable (A) from J24 on the engine board.
4. Place the printer on its right side.
Note: Be careful to not damage any cables or mar the finish of the printer.
