Lexmark X46X Series Service Manual

Repair information 4-71
7014-xxx
Right rear frame assembly removal
1. Remove the flatbed assembly. See “Flatbed removal” on page 4-89.

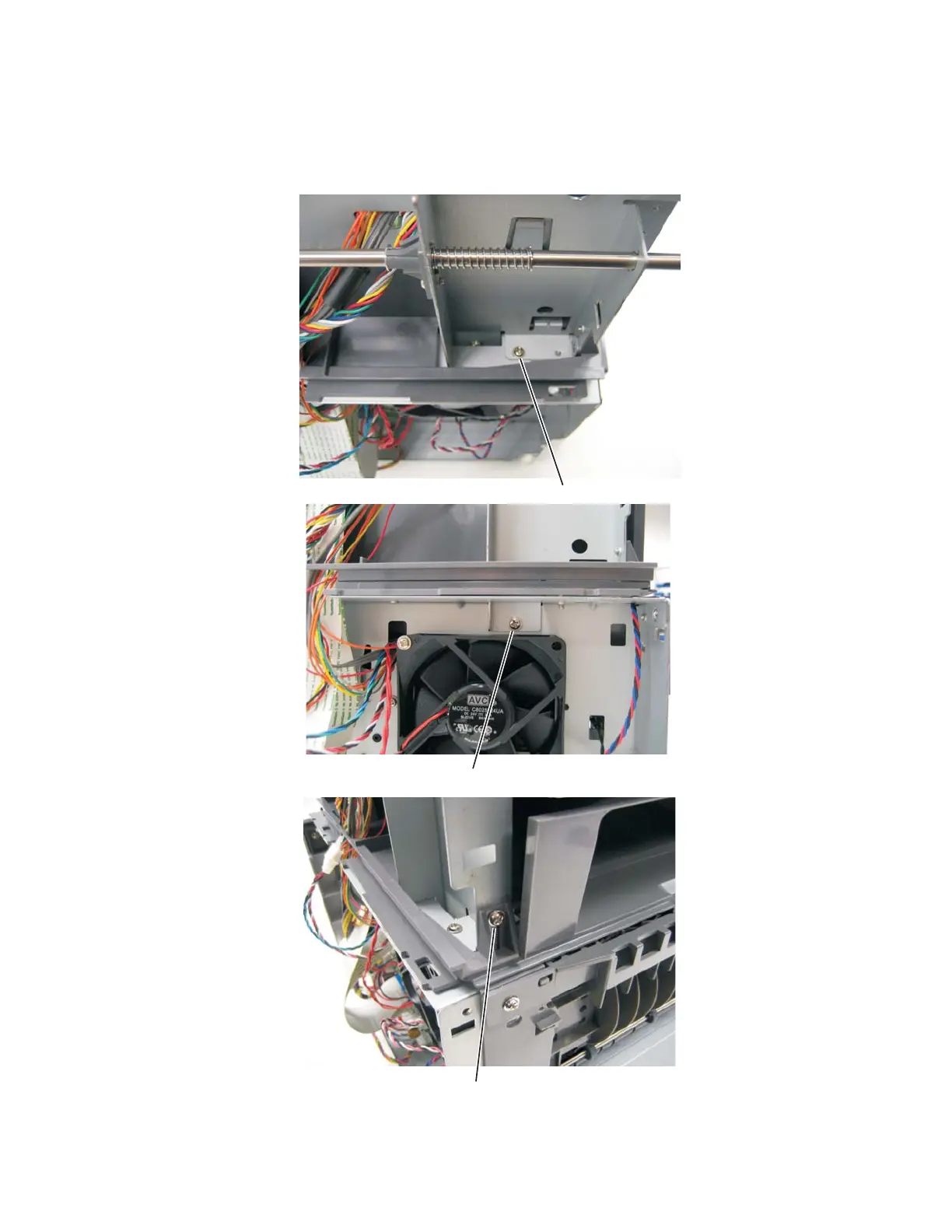

2. Remove the three screws (A) from the right rear frame assembly.
3. Carefully lift the right rear frame assembly off of the print engine frame.
B
A
B
A
B
A
