Repair information 4-11
7014-xxx
Controller board shield

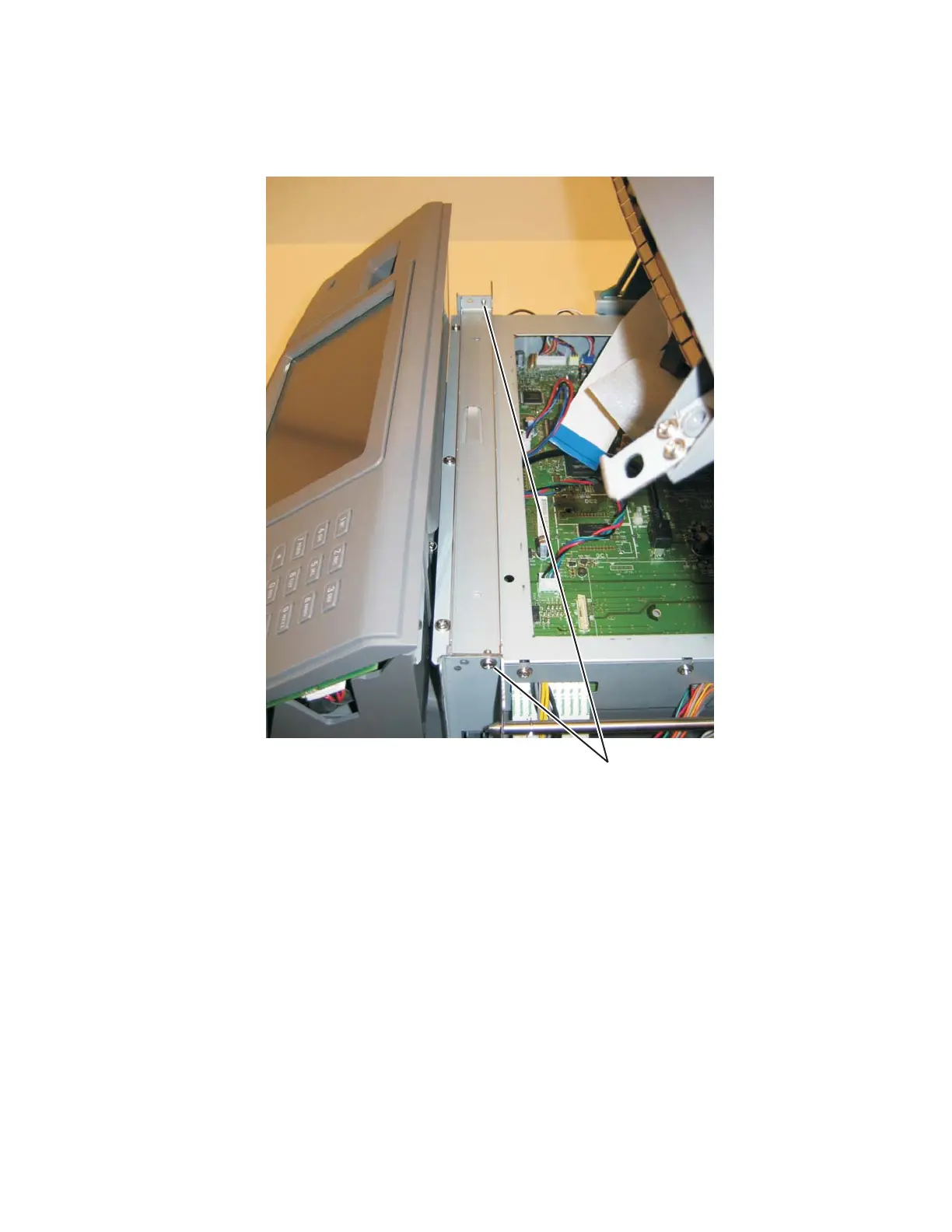

1. Remove the two screws (A) securing the controller shield bracket to the controller board cage.
A
