4-76
7014-xxx
Mid rear cover removal

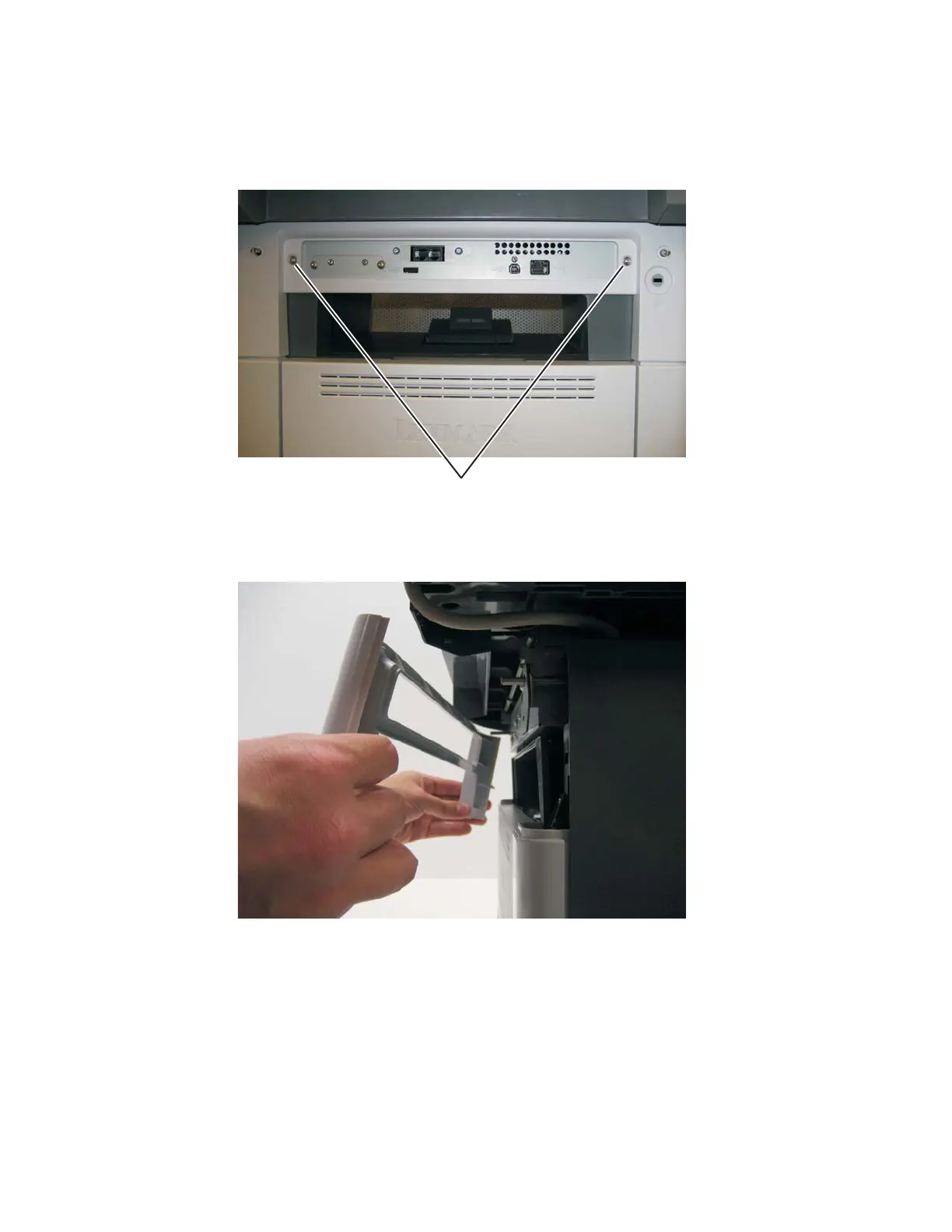

1. Remove the two metal screws (A).
2. Pull the upper rear cover back.
3. Carefully disengage that snaps and remove the cover.
A
