Repair information 4-113
7014-xxx

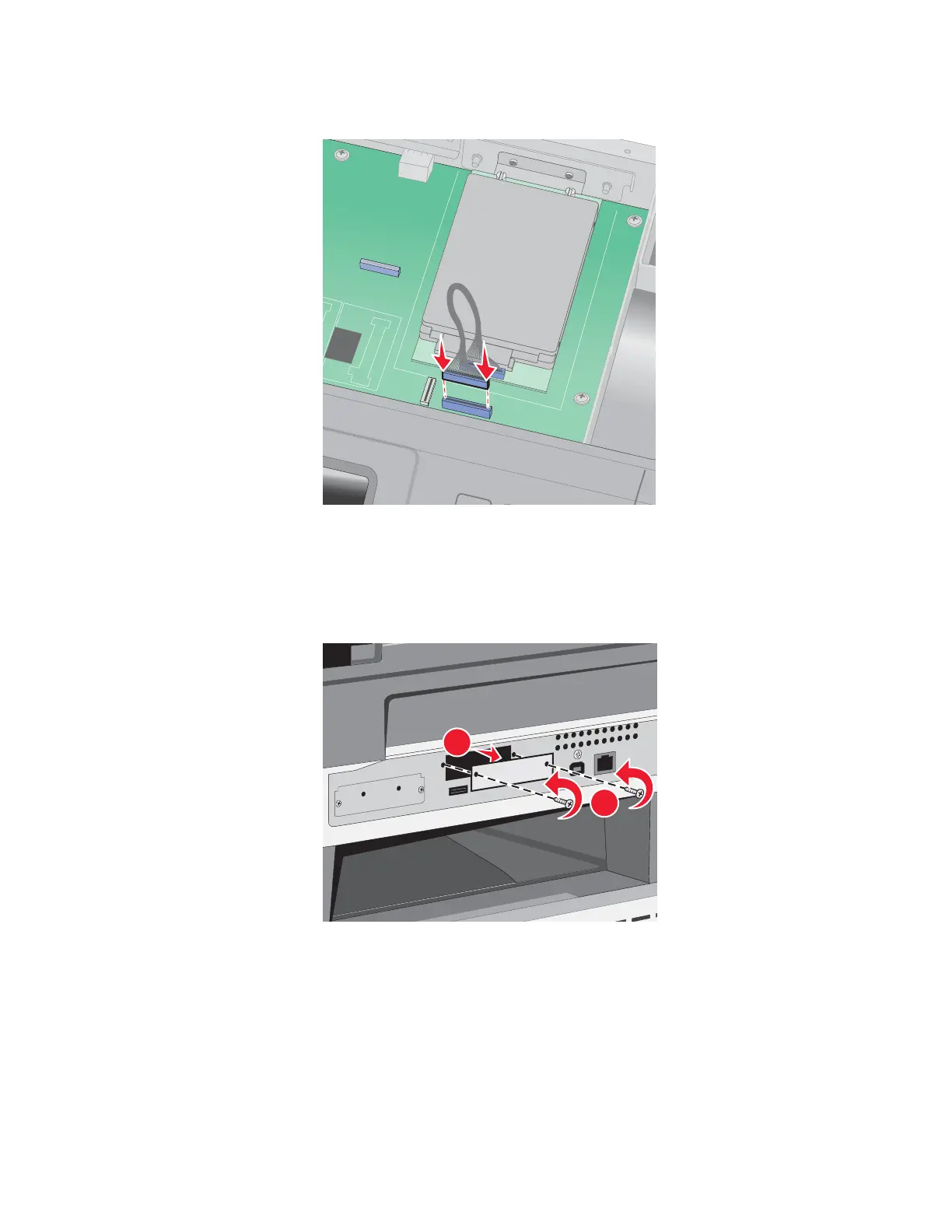

4. Connect the hard disk interface cable to the connector on the controller board.
Fax card installation
1. Access the controller board.
2. Unpack the fax card,
3. Remove the fax card cover on the controller board cage.
1
2
