Lexmark X46X Series Service Manual

4-68
7014-xxx

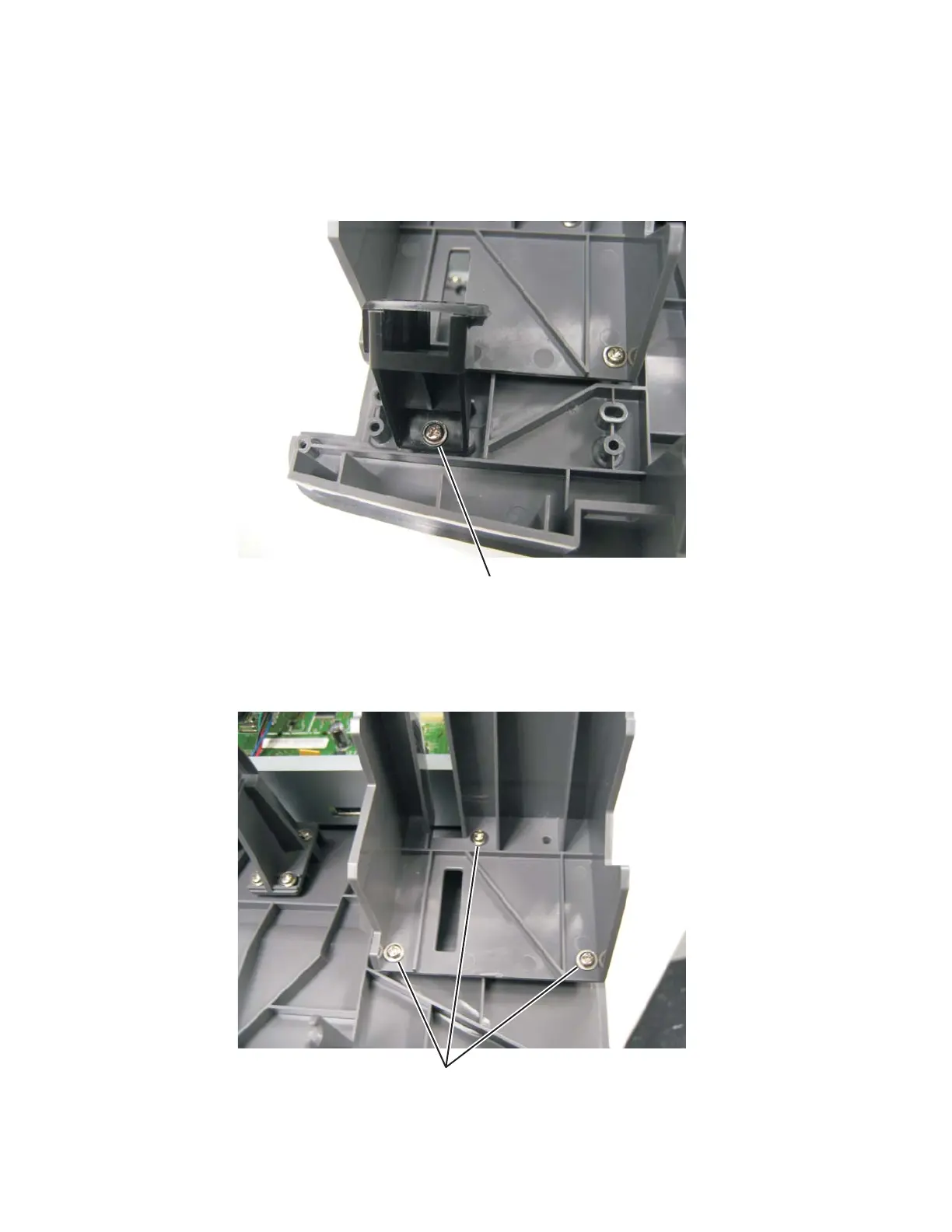

USB cable mount bracket removal
1. Remove the operator panel keypad.
2. Open the USB cable clamp and remove the USB cable.
3. Remove the screw (A) securing the USB cable mount bracket to the tub assembly.
Operator panel support removal
1. Remove the operator panel keypad.
2. Remove the three screws (A) securing the operator panel support to the tub assembly.
Note: The same steps are performed for both supports.
B
A
A
