4-102
7014-xxx
ADF cable removal
1. Remove the left scanner cover. See “Left scanner cover removal” on page 4-103.
2. Remove the left cover. See “Left side cover removal” on page 4-33.
3. Remove the controller board shield. See “Controller board shield” on page 4-11.

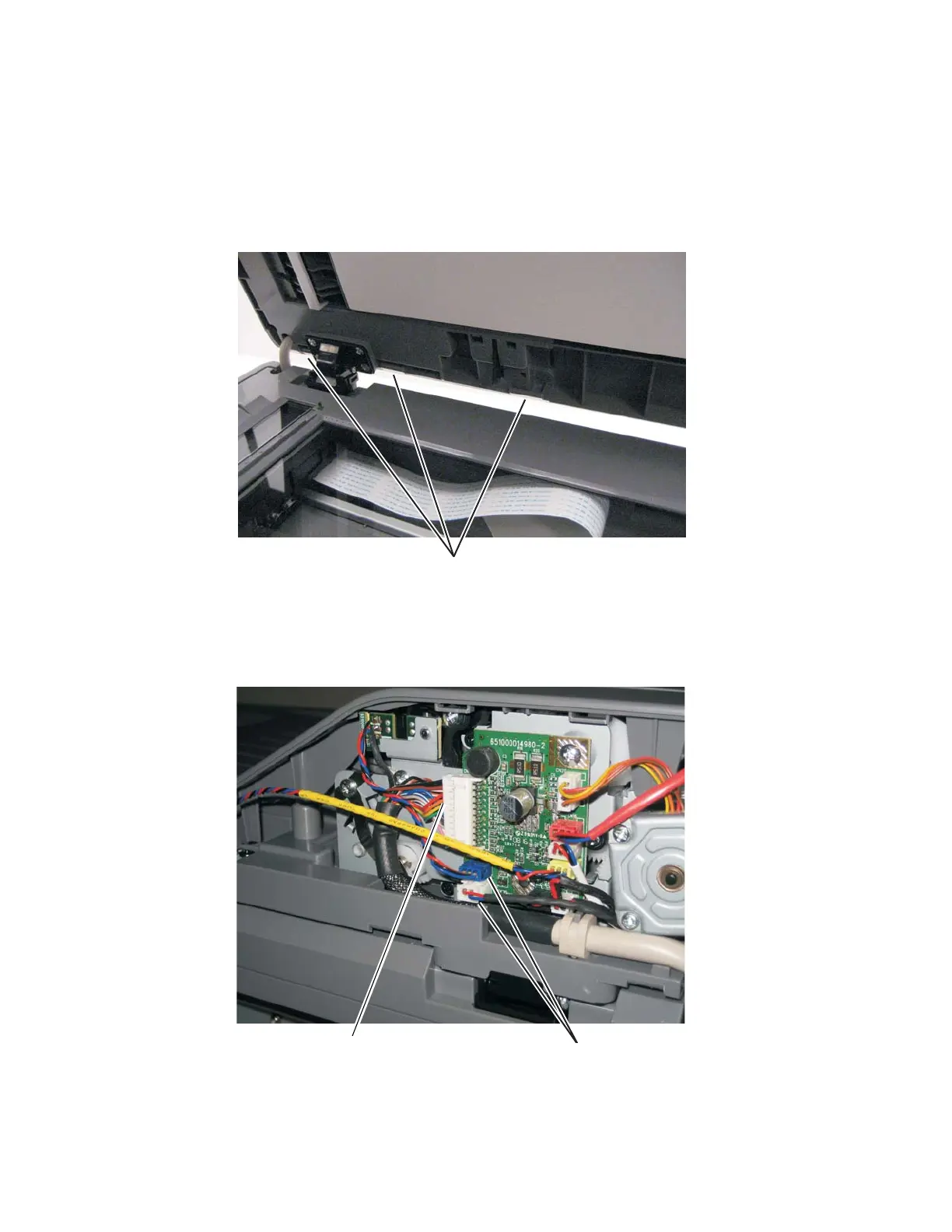

4. Lift the flatbed cover and unsnap the three tabs (A) securing the ADF rear cover to the ADF.
5. Remove the rear ADF cover.
6. Disconnect the ADF cable (B) and two sensor connections (C) on the relay card above the ADF relay
cable.
7. Disconnect the ADF cable from connector J17 on the controller board.
8. Disconnect the ADF cable ground from the controller cage.
To Next Page
