Lexmark X46X Series Service Manual

Repair information 4-77
7014-xxx
Rear door and lower rear cover removal
1. Remove the mid rear cover. See “Mid rear cover removal” on page 4-76.
2. Open the rear door.

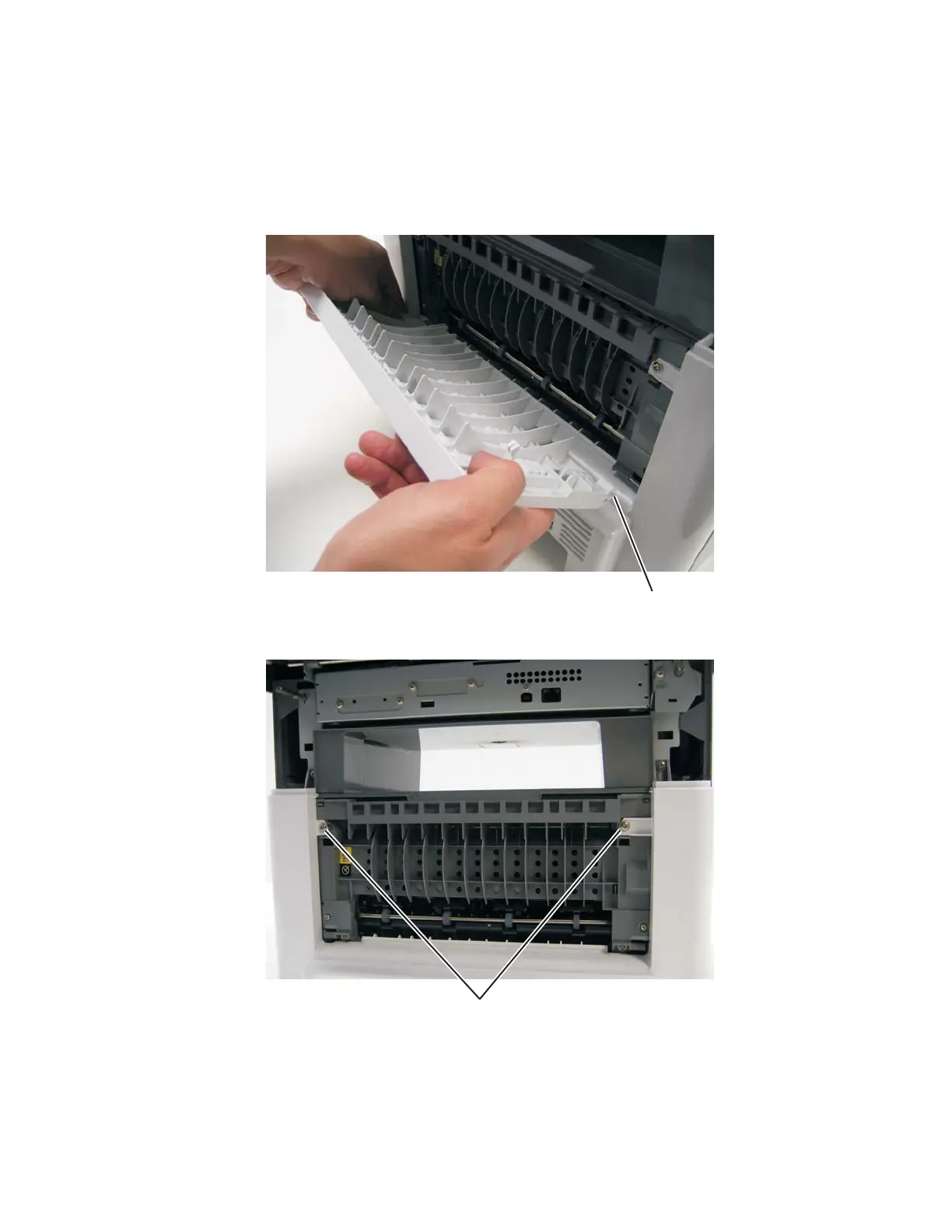

3. Pull the rear door up at an angle, disconnect the door from the notch (A), and remove.
4. Remove the two screws (B) from the top of the rear cover.
5. Tilt the lower rear cover, and remove.
A
B
