Lexmark X46X Series - Page 269

Repair information 4-107
7014-xxx

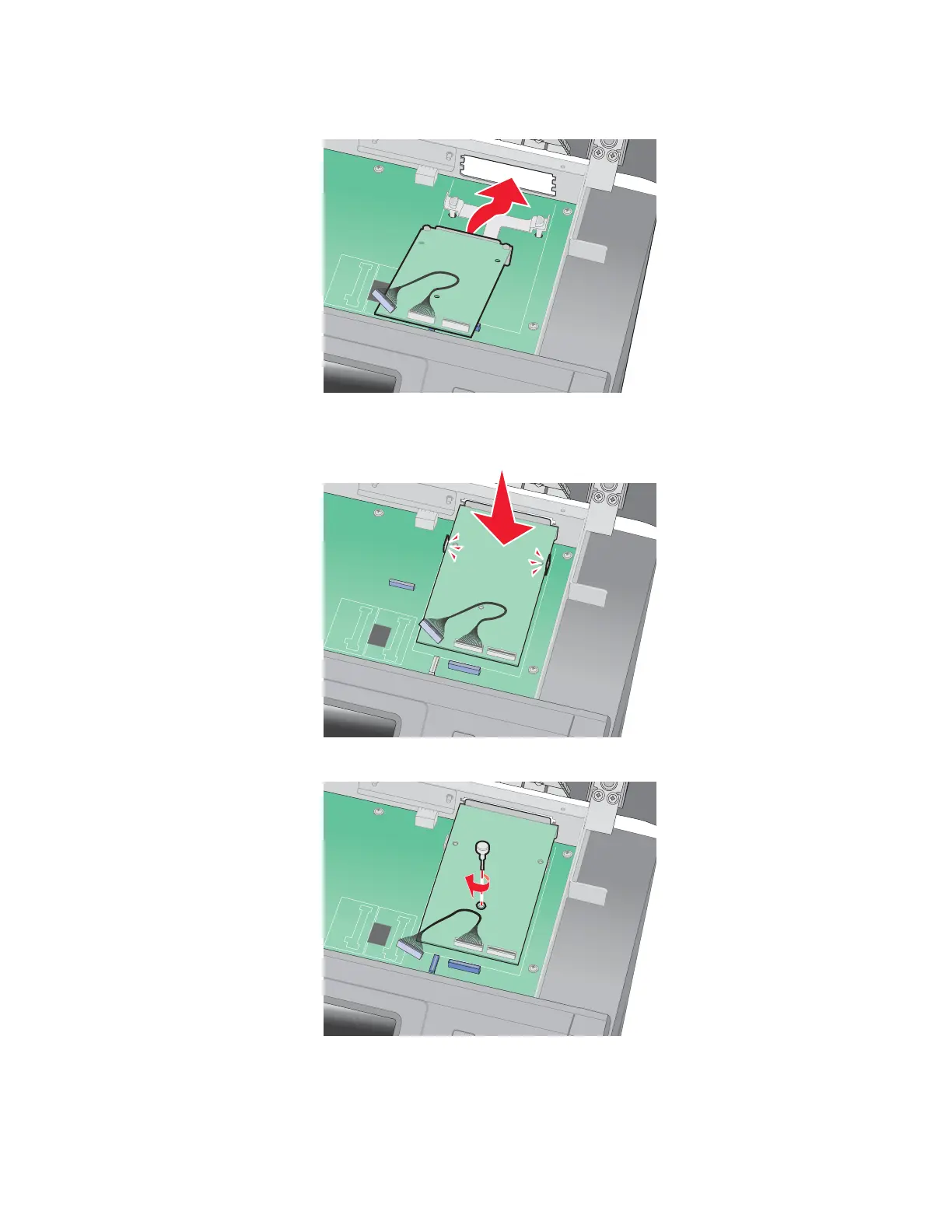

6. Install the ISP onto the plastic tee.
Note: Make sure the ISP card is properly aligned with the rear of the contoller board cage.
7. Press down on the ISP to seat it in the tee.
8. Insert the thumbscrew.
Note: Do not tighten the thumbscrew at this time.
