4-92
7014-xxx

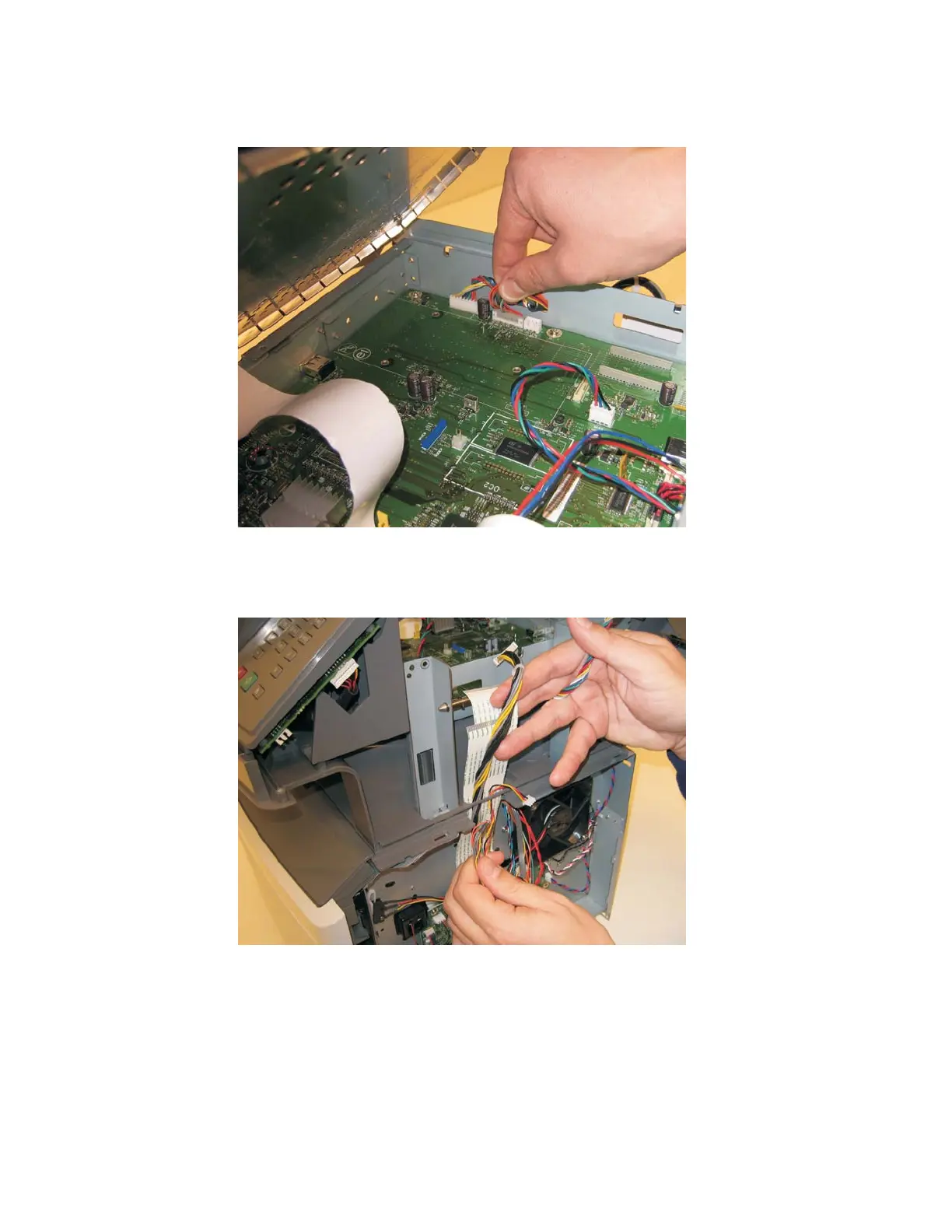

11. Disconnect the LSU laser diode cable from the controller board.
12. Thread the LSU diode cabe, the cover interlock cable, the stairway cables, and the controller board power
supply cable through the side of the printer away from the scanner assembly.
