Repair information 4-27
7014-xxx

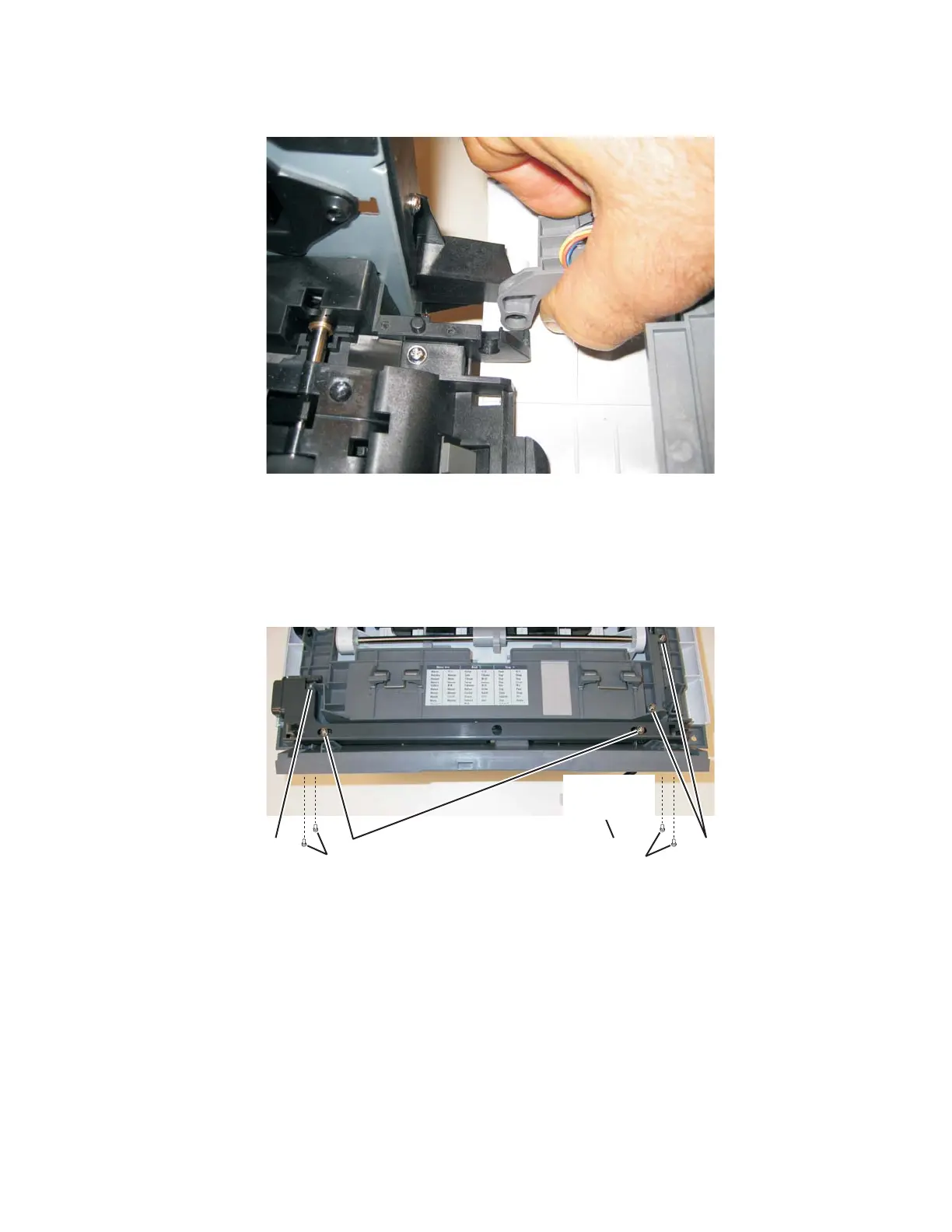

8. Disconnect the front access door from its hinges, and remove.
Installation note:
a. Install a new front access door at its hinges.
b. Connect the fuser link.
c. Remove the two screws (D).
d. Slide the latch to the left to free it, and then rest it on the door. Keep the spring in place.
e. Finish tightening the screws (F), and reinstall the remaining parts.
