Lexmark X46X Series Service Manual

Repair information 4-51
7014-xxx

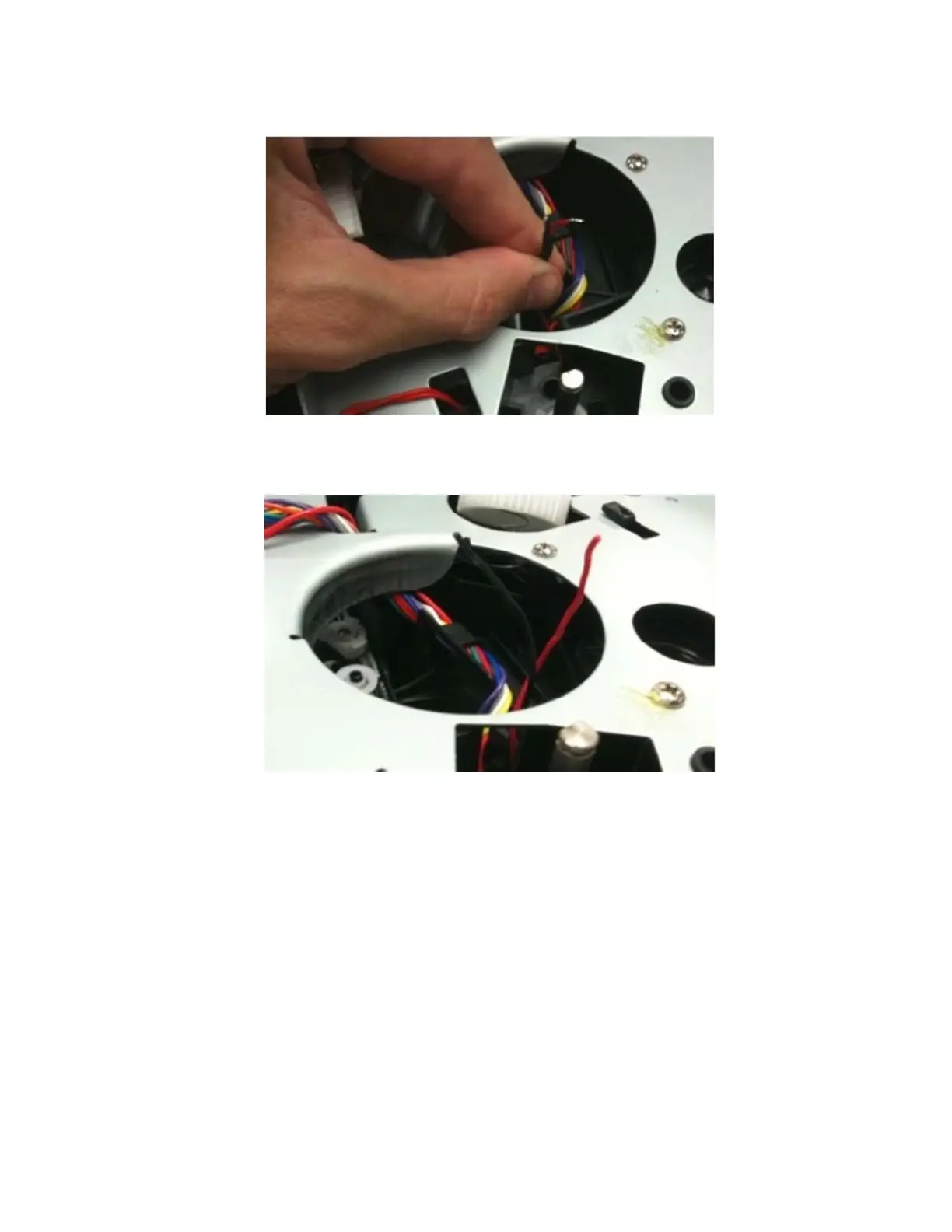

7. Pull the clutch cable into the motor cavity. Pull up the cable to remove any slack.
8. Remove any shrink tubing that is holding the wires together.
Warning: Do not strip the insulation off the red and black wires. The connectors will not work if the insulation is
removed.
