Repair information 4-53
7014-xxx

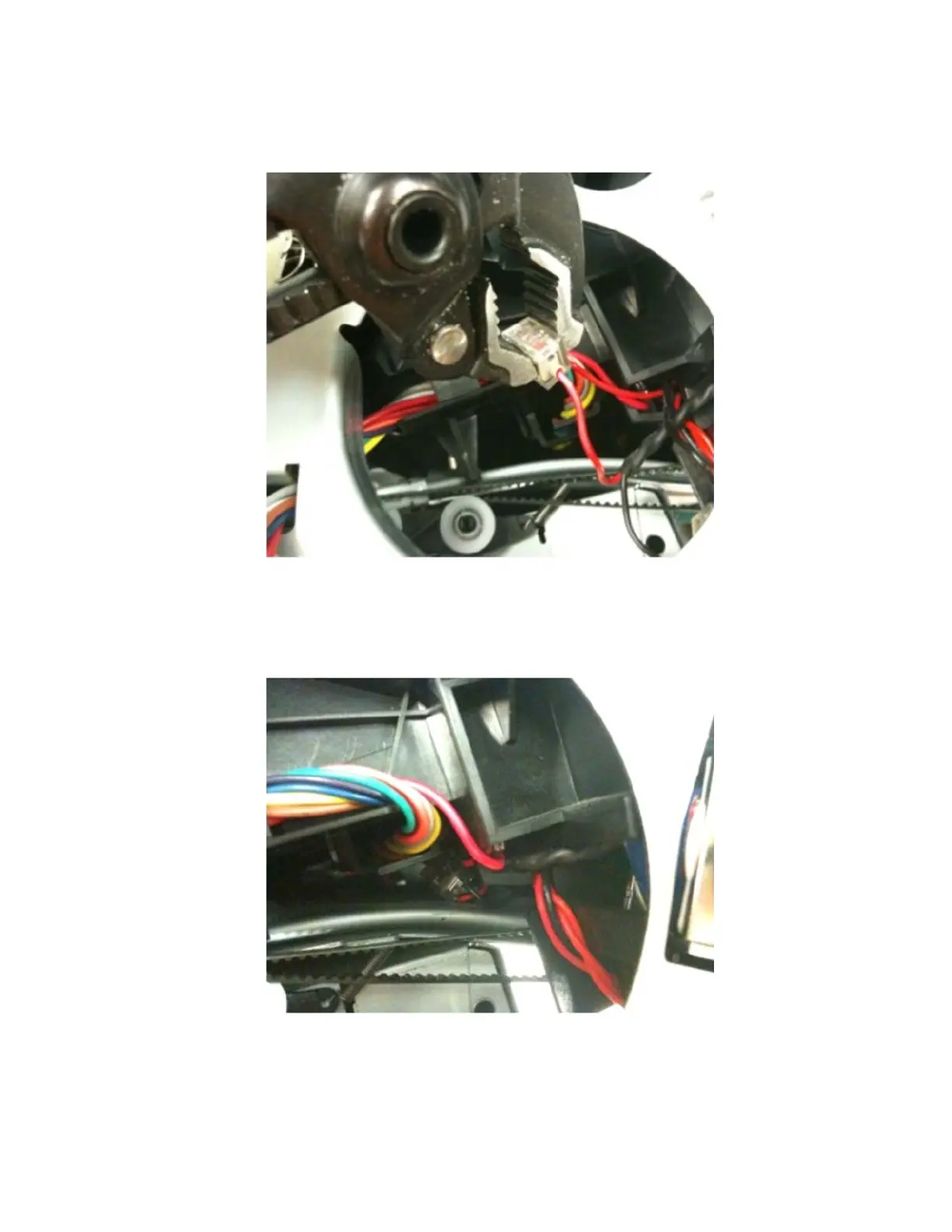

6. Using a pair of pliers, squeeze the connector to secure the red wires in place.
Note: Check the connector to make sure that the gray connector is pressed flush to the bottom of the wire
splice.
7. Repeat steps four through six for the black wires on the clutch and printer.
8. Tuck the connectors securely above the duplex guide.
Note: If needed, use a wire tie to secure the cable in place. Make sure the tie does not interfere with the
paper path.
9. Reinstall the gear drive.
10. Print the menu pages to test the printer.
11. Reinstall the left cover.
