4-62
7014-xxx

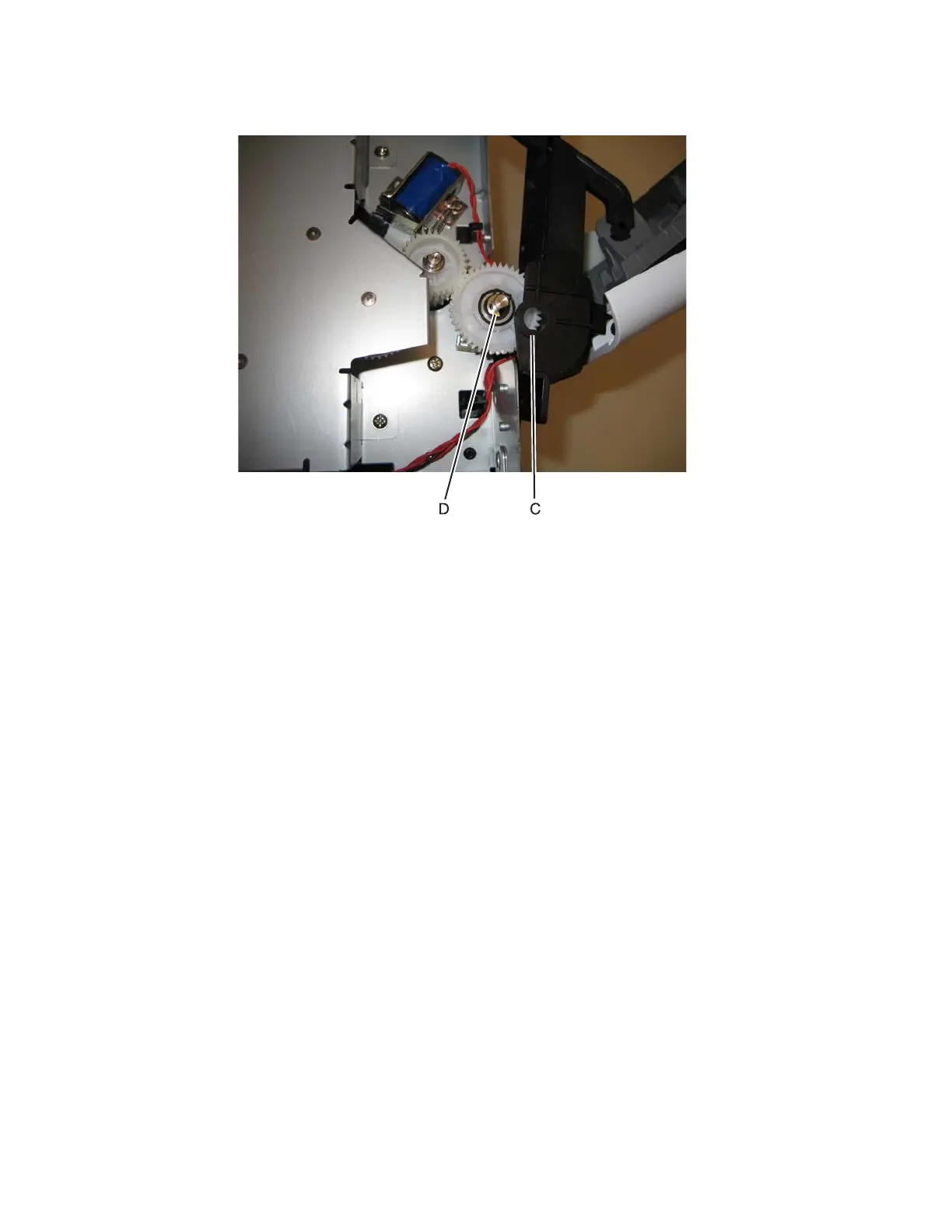

6. Disconnect the left hinge (C) from the feed clutch, and remove the e-clip (D).
7. Lift and remove the multipurpose feeder (MPF) feed clutch.
