293.02—Flatbed cover open jam service check
7

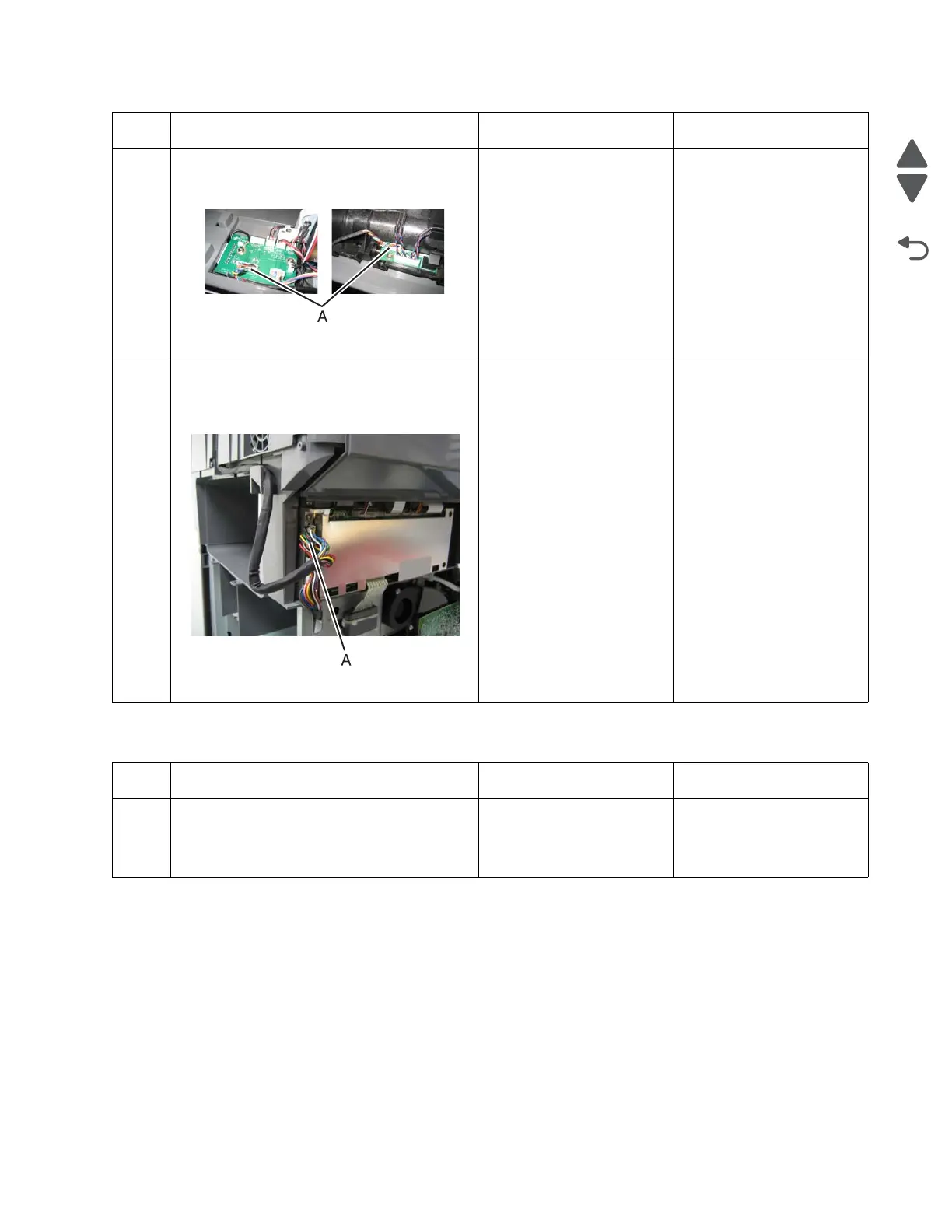

Remove the ADF motor side cover. Check the
cabling (ADF front assembly to scanner ICC
card) (A).
Is the cable damaged?
Go to step 8. Replace the cable.
8
Remove the left cover. See “ADF motor side
cover removal” on page 4-232. Check the
cabling (scanner MDC card to scanner ICC
card) (A).
Is the cable damaged?
Replace the ICC card. See
“Scanner ICC card
removal” on page 4-283
Replace the cable. See
“UICC cable removal” on
page 4-202.
Step Questions / actions Yes No
1 Replace the scanner ICC card. See
“Scanner ICC card removal” on
page 4-283.
Did the error clear?
Problem resolved. Replace the ADF. See
“ADF removal (entire)”
on page 4-248.
Step Questions / actions Yes No
