Lexmark X734DE - 925.03, 925.05-Fan Error Service Check

Diagnostic information 2-129
7526
Go Back
Previous
Next

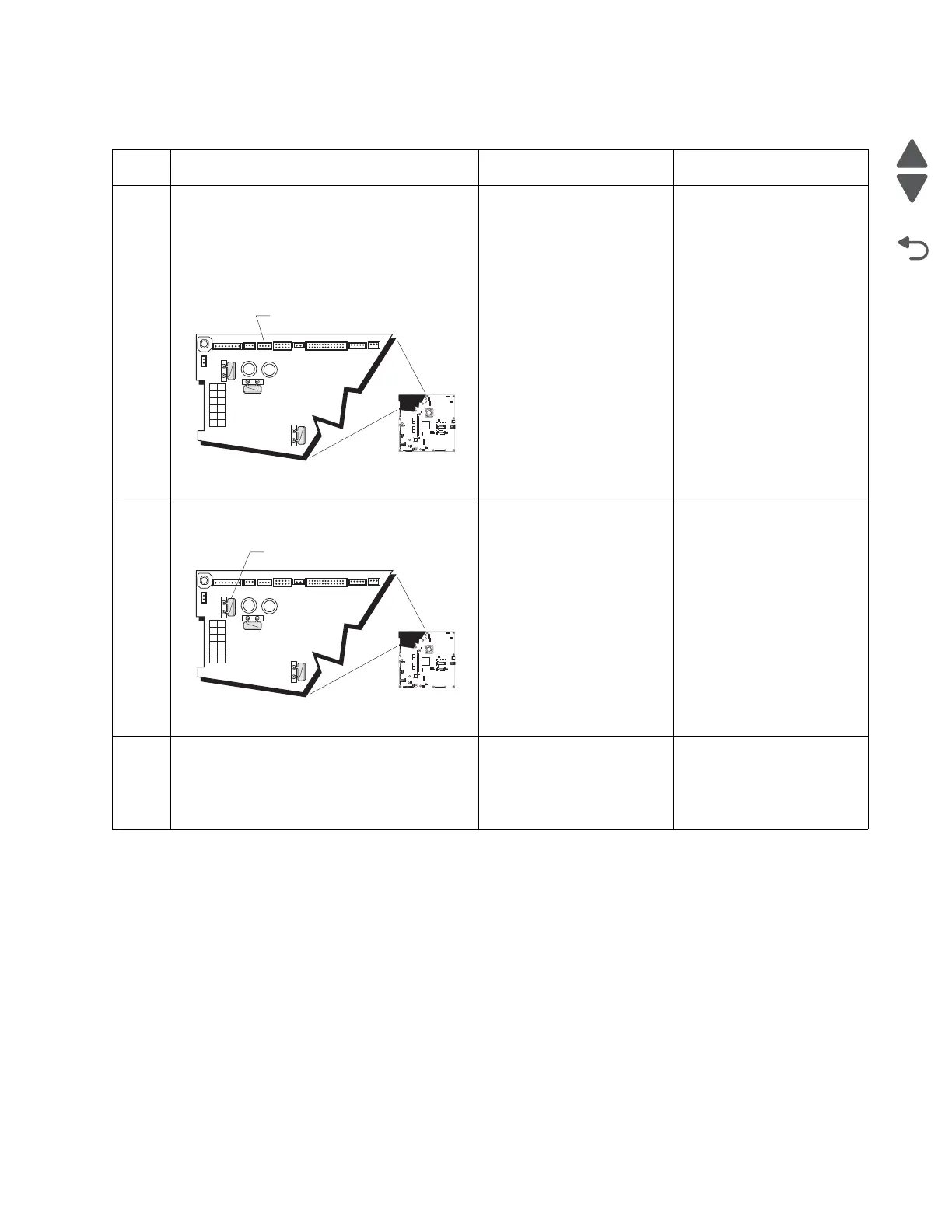

925.01, 925.03, 925.05—Fan error service check
Step Questions / actions Yes No
1 Turn the printer off, and then remove the rear
frame cover. See “Rear frame cover
removal” on page 4-40.
Check the cable in connector JFAN1 for
proper connection to the system board, for
pinch points, and for any other damage to the
cable or the connector.
Is the cable damaged?
Replace the fan. See
“Cooling fan removal” on
page 4-83.
Go to step 2.
2
Measure the resistance across fuse F5 on the
system board.
Is the fuse blown?
Replace the system board.
See “System board
removal” on page 4-165.
Go to step 3.
3
Disconnect the cable in connector JFAN1,
and plug in a new cooling fan. Turn the
multifunction printer off, and turn the MFP on
(perform a POR).
Did the error clear?
Replace the fan. See
“Cooling fan removal” on
page 4-83.
Replace the system board.
See “System board
removal” on page 4-165.
1
JSB1
JBIN1
JFAN1
JFUSER1
JBOR1
JHVPS1
JMIRR1
JBLW1
JCVR1JCVR1
JLVPS2
JCARTP1
JCARTS1
JCARTS2
JCARTP2
JDVR1
JTPS1
JOPT1
JFDS1
JINT1
JFDPCK1JTRAY1JSEC1
JDX1
JT12
J5
JDIMM1
JOPP1
JT1
JUSB1
JBOOT1
JFMUSB1
J49
JTWF1
JTDBUG1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
JTLBT1
JPH1
F5
F6
F7
F9
F10
F12
F13
F14
1
1
J10
1
1
A
1
JSB1
JBIN1
JFAN1
JFUSER1
JBOR1
JHVPS1
JMIRR1
JBLW1
JCVR1JCVR1
JLVPS2
JCARTP1
JCARTS1
JCARTS2
JCARTP2
JDVR1
JTPS1
JOPT1
JFDS1
JINT1
JFDPCK1JTRAY1JSEC1
JDX1
JT12
J5
JDIMM1
JOPP1
JT1
JUSB1
JBOOT1
JFMUSB1
J49
JTWF1
JTDBUG1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
JTLBT1
JPH1
F5
F6
F7
F9
F10
F12
F13
F14
1
1
J10
1
1
A
