Multipurpose feeder (MPF)/duplex motor assembly removal
See “MP feeder/duplex motor” on page 7-7 for the part number.
1. Remove the low-voltage power supply (LVPS). See “Low-voltage power supply (LVPS) removal” on
page 4-124.
2. Remove the multipurpose feeder/duplex gear and housing. See “Multipurpose feeder (MPF)/duplex
gear and housing removal” on page 4-128.

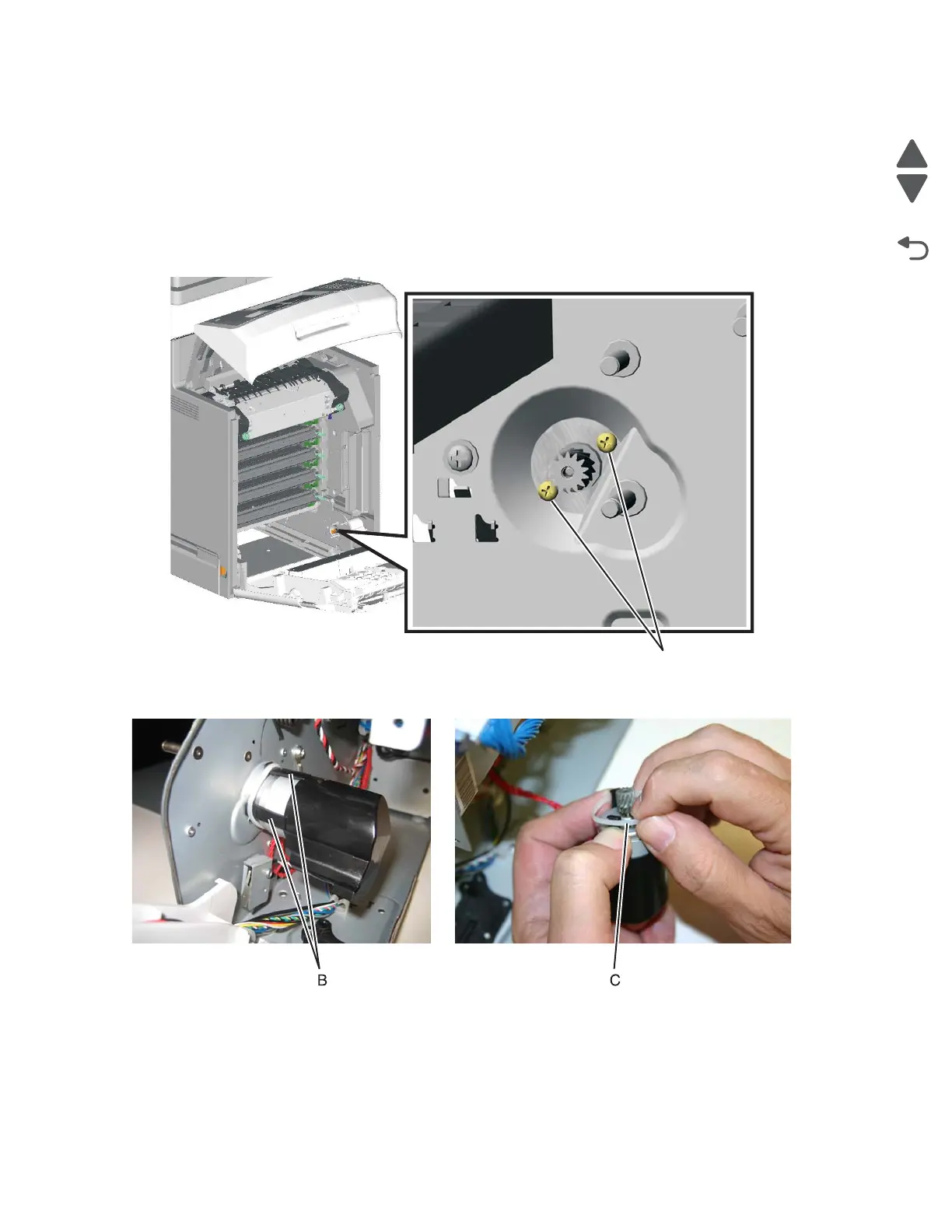

3. Remove the two multipurpose feeder/duplex motor mounting screws (A).
4. Remove the multipurpose/duplex motor from the printer.
5. Push in the prongs (B) of the housing in to remove the cable tie (C).
A
