Left cover removal
See “Left cover” on page 7-3 for the part number.
Remove the left cover with the left door cover attached.
1. Remove the rear cover. See “Rear cover removal” on page 4-39.
2. Remove the waste toner assembly. See “Waste toner assembly removal” on page 4-212.
3. Open the top access cover.
4. Open the front access cover.

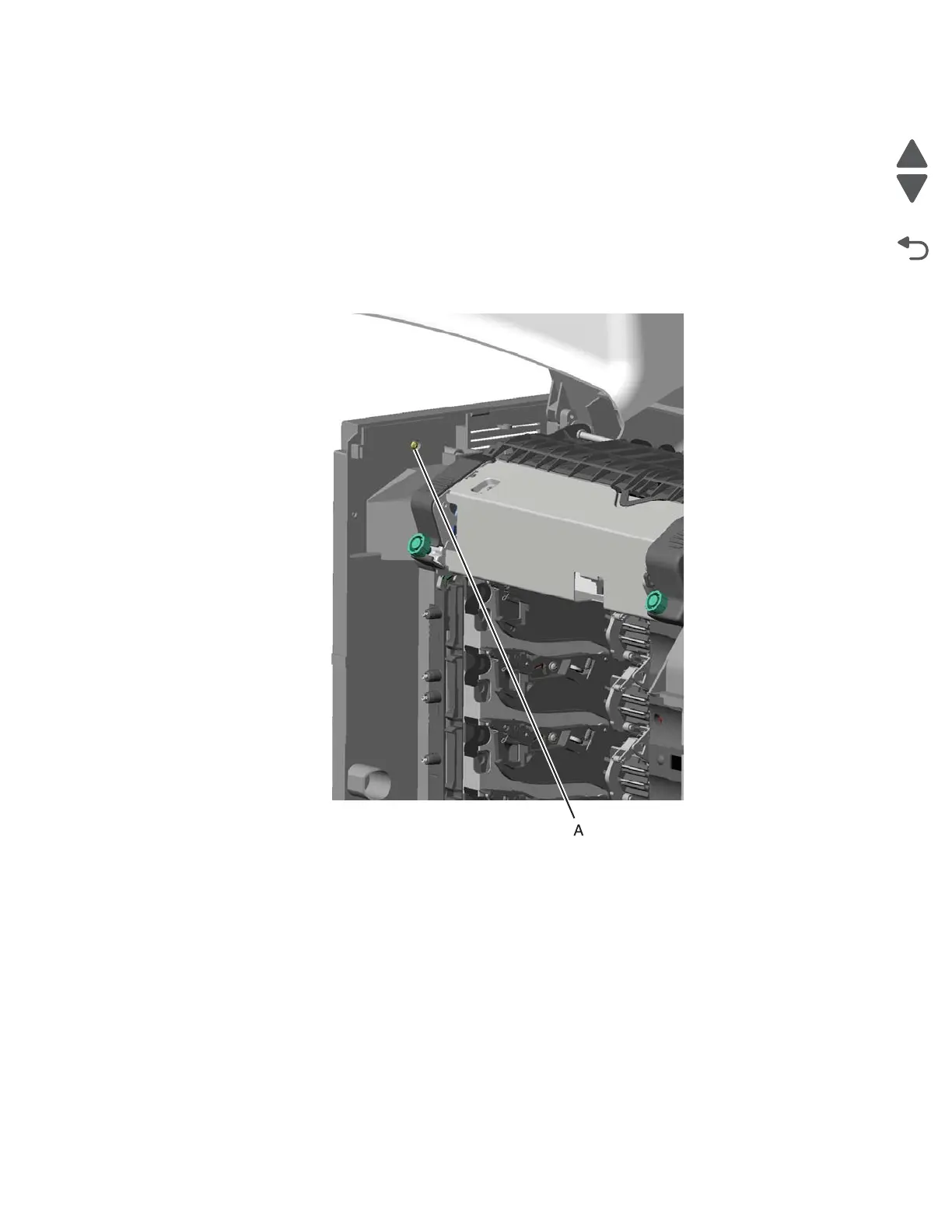

5. Remove the screw on the inside (A).
