Lexmark X734DE - XX, 920.02-Autocomp (Tray 1) Motor Error Service Check

2-46 Service Manual
7526
Go Back
Previous
Next

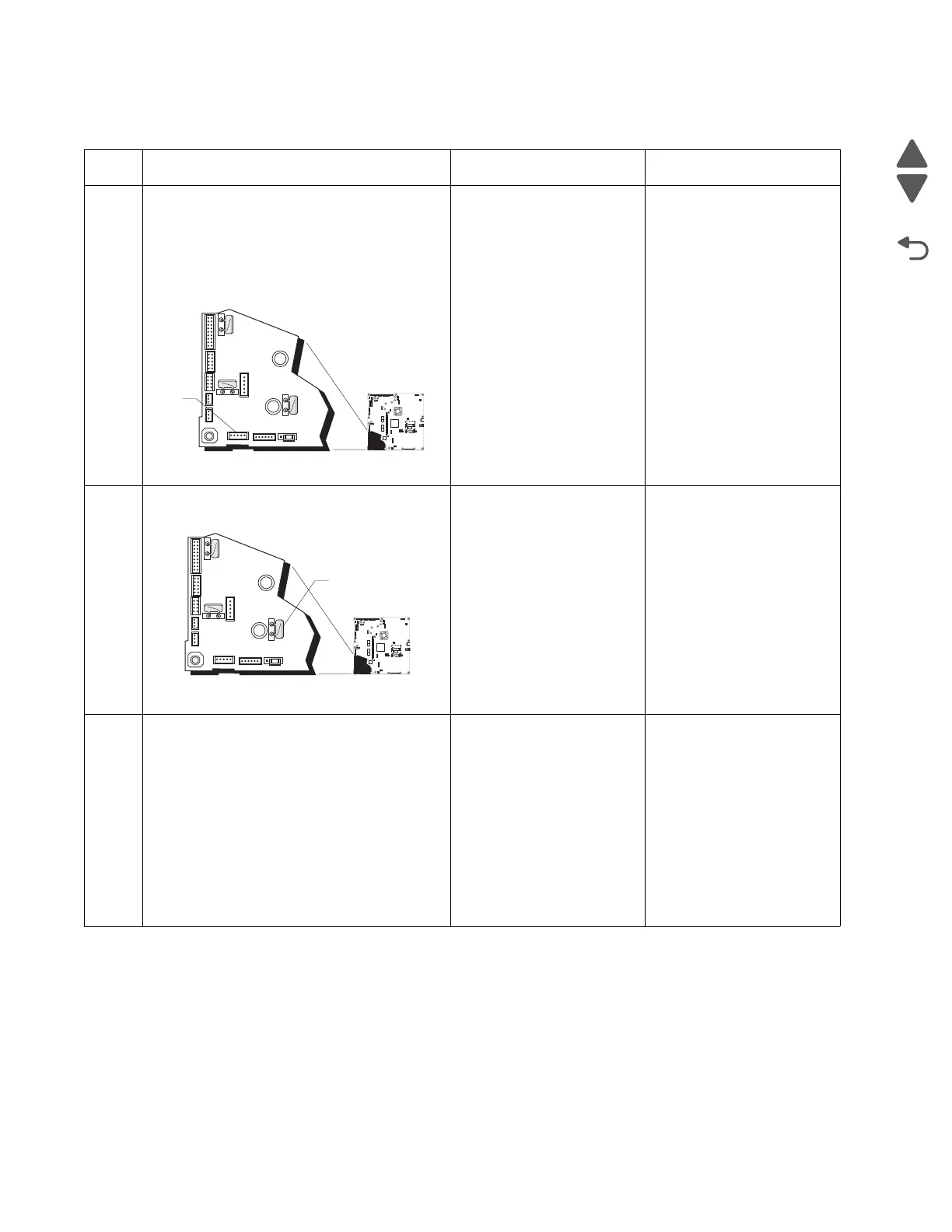

140.xx, 920.02—Autocomp (tray 1) motor error service check
Step Questions / actions Yes No
1 1. Turn the printer off.
2. Remove the rear frame cover. See “Rear
frame cover removal” on page 4-40.
3. Check the cable in connector JFDPCK1
for proper connection to the system board,
the cable for pinch points, and the cable or
connector for any other damage.
Is the cable damaged?
Replace the paper pick
mechanism. See “Paper
pick mechanism
assembly removal” on
page 4-137.
Go to step 2.
2
Measure the resistance across fuse F13 on
the system board.
Is the fuse blown?
Replace the system board.
See “System board
removal” on page 4-165.
Go to step 3.
3
1. Disconnect the cable in connector
JFDPCK1, and then connect the cable for
the new paper pick mechanism.
2. Bring the printer up in Diagnostics Menu
(turn the multifunction printer off, press
and hold 3 and 6, turn the MFP on, and
then release the buttons when the
progress bar displays).
3. Touch Print Test.
4. Touch Tray 1.
5. Touch Single.
Did the new pick motor turn before the feed
error occurred?
Replace the paper pick
mechanism. See “Paper
pick mechanism
assembly removal” on
page 4-137.
Replace the system board.
See “System board
removal” on page 4-165.
1
JSB1
JBIN1
JFAN1
JFUSER1
JBOR1
JHVPS1
JMIRR1JMIRR1
JBLW1
JCVR1
JLVPS2
JCARTP1
JCARTS1
JCARTS2
JCARTP2
JDVR1
JTPS1
JOPT1
JFDS1
JINT1
JFDPCK1JTRAY1JSEC1
JDX1
JT12
J5
JDIMM1JDIMM1
JOPP1
JT1
JUSB1
JBOOT1
JFMUSB1
J49J49
JTWF1
JTDBUG1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
JTLBT1
JPH1
F5
F6
F7
F9
F10
F12
F13
F14
1
1
J10
1
1
A
1
JSB1
JBIN1
JFAN1
JFUSER1JFUSER1
JBOR1
JHVPS1
JMIRR1
JBLW1
JCVR1JCVR1
JLVPS2
JCARTP1
JCARTS1
JCARTS2
JCARTP2
JDVR1
JTPS1
JOPT1
JFDS1
JINT1
JFDPCK1JFDPCK1JTRAY1JSEC1
JDX1
JT12
J5
JDIMM1
JOPP1
JT1
JUSB1
JBOOT1
JFMUSB1JFMUSB1
J49
JTWF1
JTDBUG1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
JTLBT1
JPH1
F5
F6
F7
F9
F10
F12
F13
F14
1
1
J10
1
1
A
