ADF front side cover removal
1. Remove the input tray. See “Input tray removal” on page 4-242.
2. Open the ADF front cover.

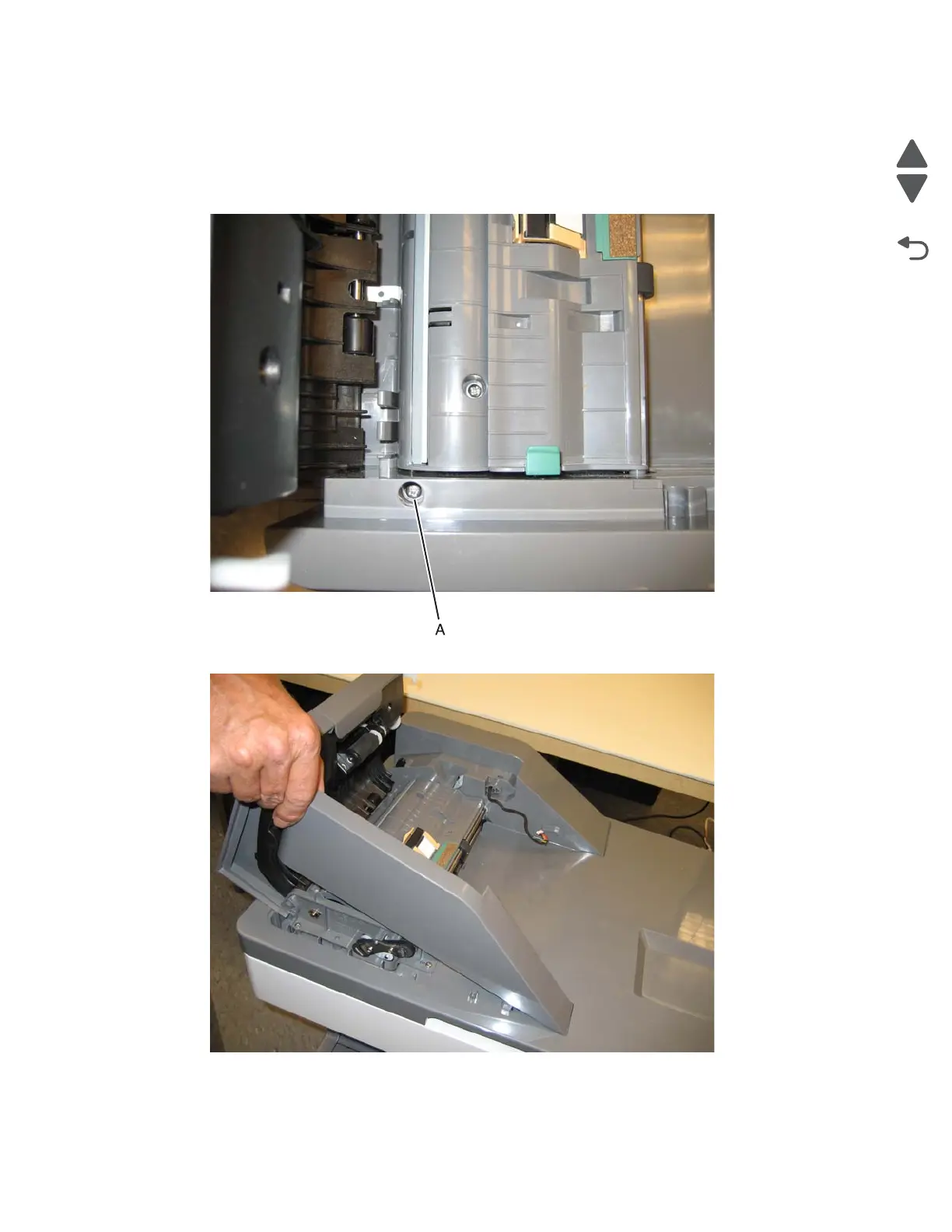

3. Remove the screw (A).
4. Lift the cover to remove.
