Repair information 4-131
7526
Go Back
Previous
Next

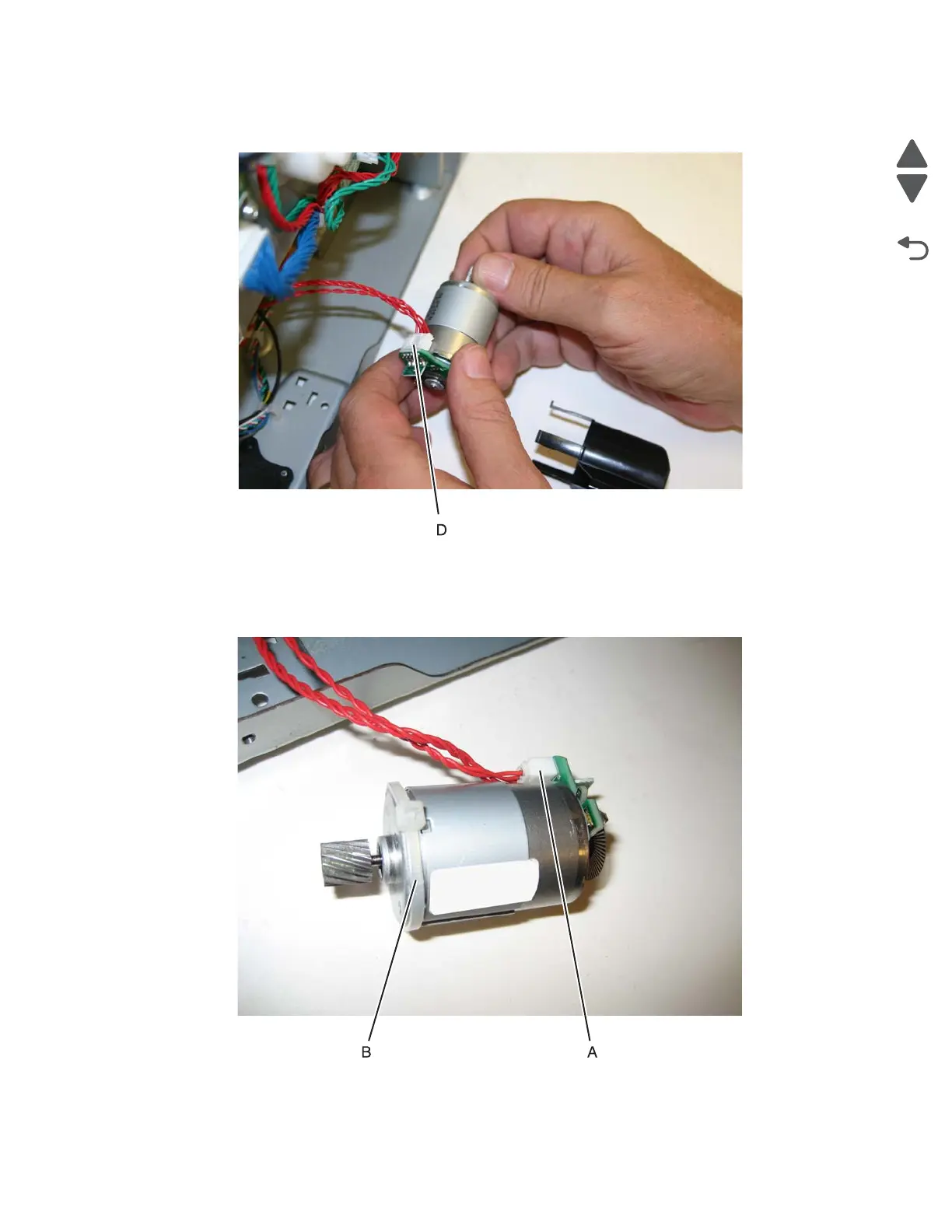

6. Slide the motor out of the housing.
7. Disconnect the connector (D) from the motor.
Installation notes:
1. Connect the cable (A) at the motor.
2. Slide the cable tie (B) onto the motor.
