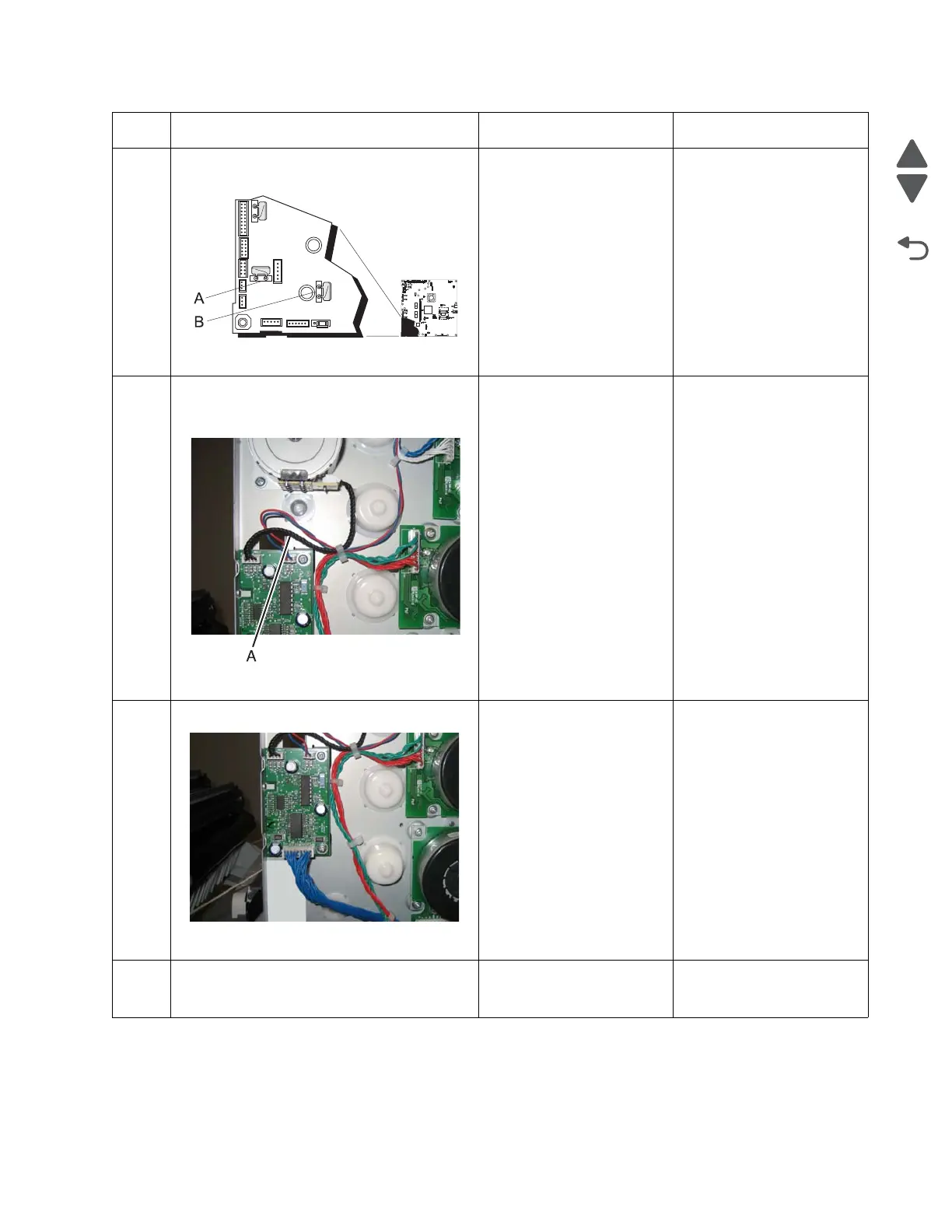

Measure the resistance across fuses F12 and
F13 on the system board.
Is either fuse blown?
Replace the system board.
See “System board
removal” on page 4-165.
Go to step 4.
4
Check the transport motor cable for pinch
points and any other damage to the cable or
connector.Check both ends of the cable.
Is the cable damaged?
Replace the transport
motor cable. See
“Transport cable
removal” on page 4-193.
Go to step 5.
5
Visually inspect the motor driver card.
Is the motor driver card damaged?
Replace the motor driver
card. See “Motor driver
card removal” on
page 4-127.
Go to step 6.
6
Replace the EP drive assembly. See
“Electrophotographic (EP) drive assembly
removal” on page 4-89.
Problem resolved. Replace the system board.
See “System board
removal” on page 4-165.
Step Questions / actions Yes No
