d. Replace the ground strap (F) on the screw (G), and tighten the screw.
e. Replace the two screws (H) for the hard disk shield.

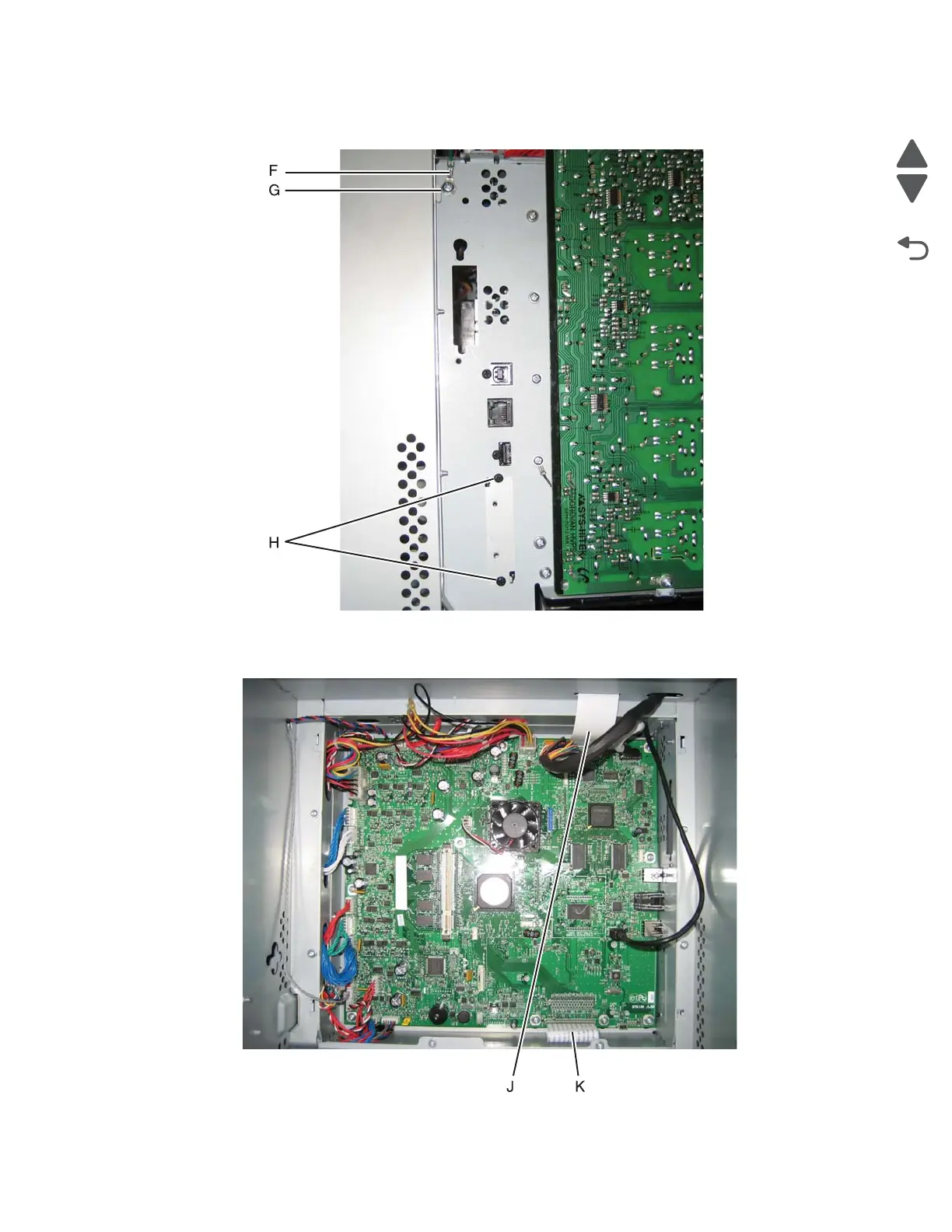

f. Reconnect all the connectors to the system board. Use the diagram below for a guideline.
Warning: Be careful reconnecting the printhead ribbon cable (J) and the UICC cable (K). Ribbon cables
can be damaged easily and should be handled carefully.
g. Replace the fax modem card and/or the hard disk, if appropriate.
