4-166 Service Manual
7526
7. Remove any toroids by uncliping the fasteners.
Note: Be sure to note where you have removed the toroids, and replace them during installation.

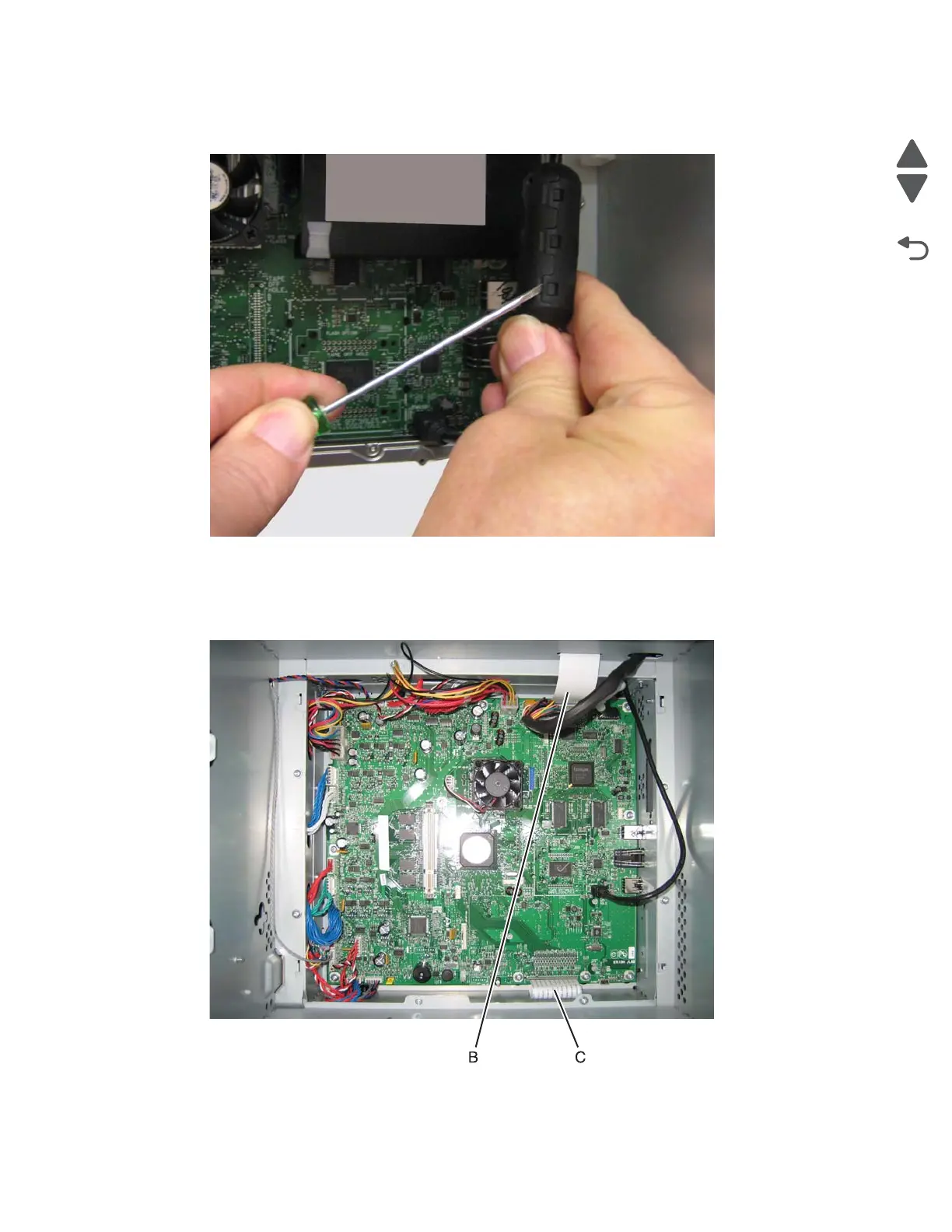

8. Disconnect all the cables from the system board.
Warning: Do not use tools to remove the UICC cable (B) or the printhead ribbon cable (C). Flat ribbon
cables can be damaged and should be removed gently by hand. When installing, carefully line up the
cable, and press straight into the connector.
