Repair information 4-259
7526

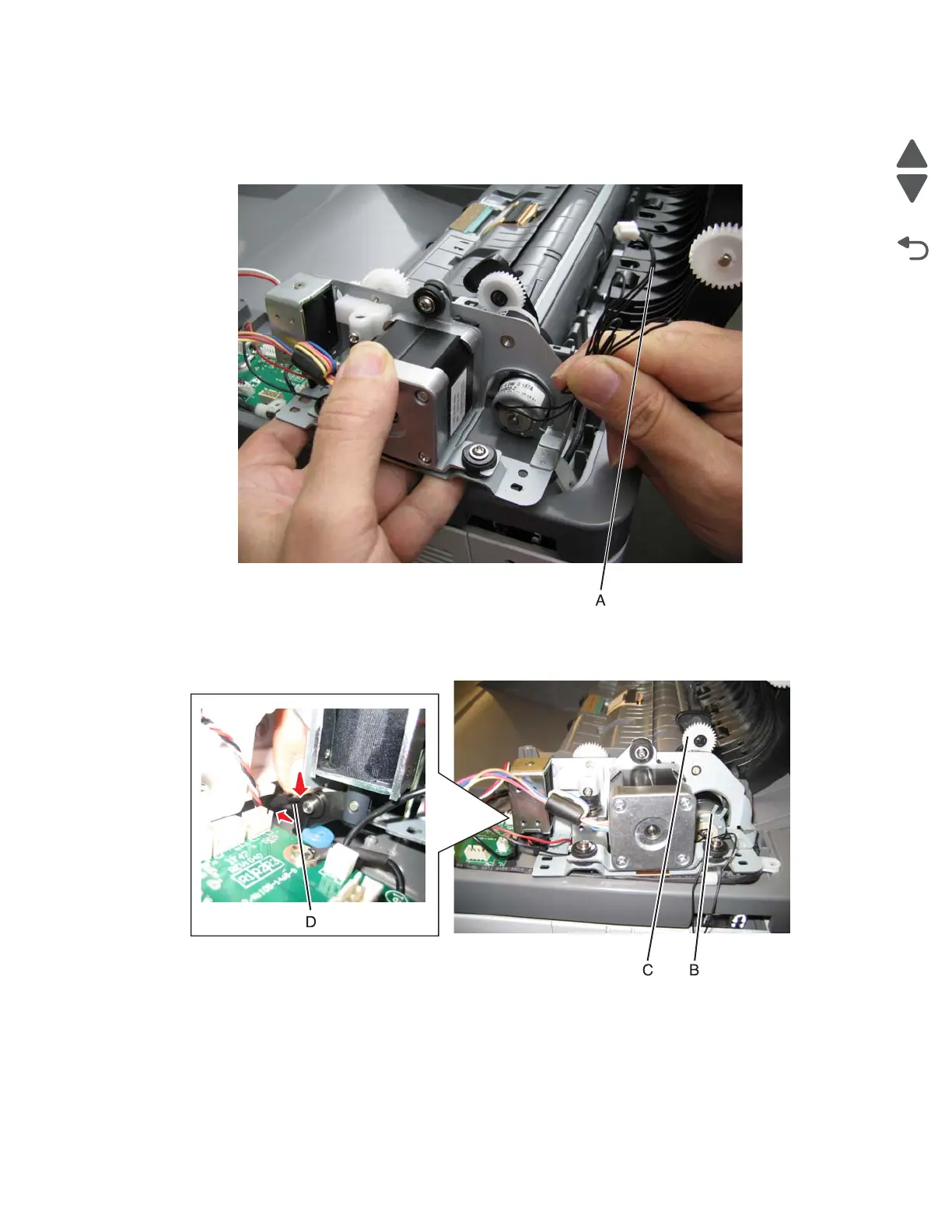

Installation notes:
1. Place the ADF motor gear train assembly over the clutch motor, and make sure the clutch motor cable (A)
is through the housing.
2. Make sure the fork of the clutch assembly (B) is up, and the gear (C) is up.
3. Slide the left side of the ADF motor gear train assembly into place, and then press down on the lever (D)
with your finger to make sure the arm of the motor gear assembly slides in below the ledge.
