Maintenance84
Figure 5-1 Cable/Plug for Connecting REPO switch to UPS REPO port

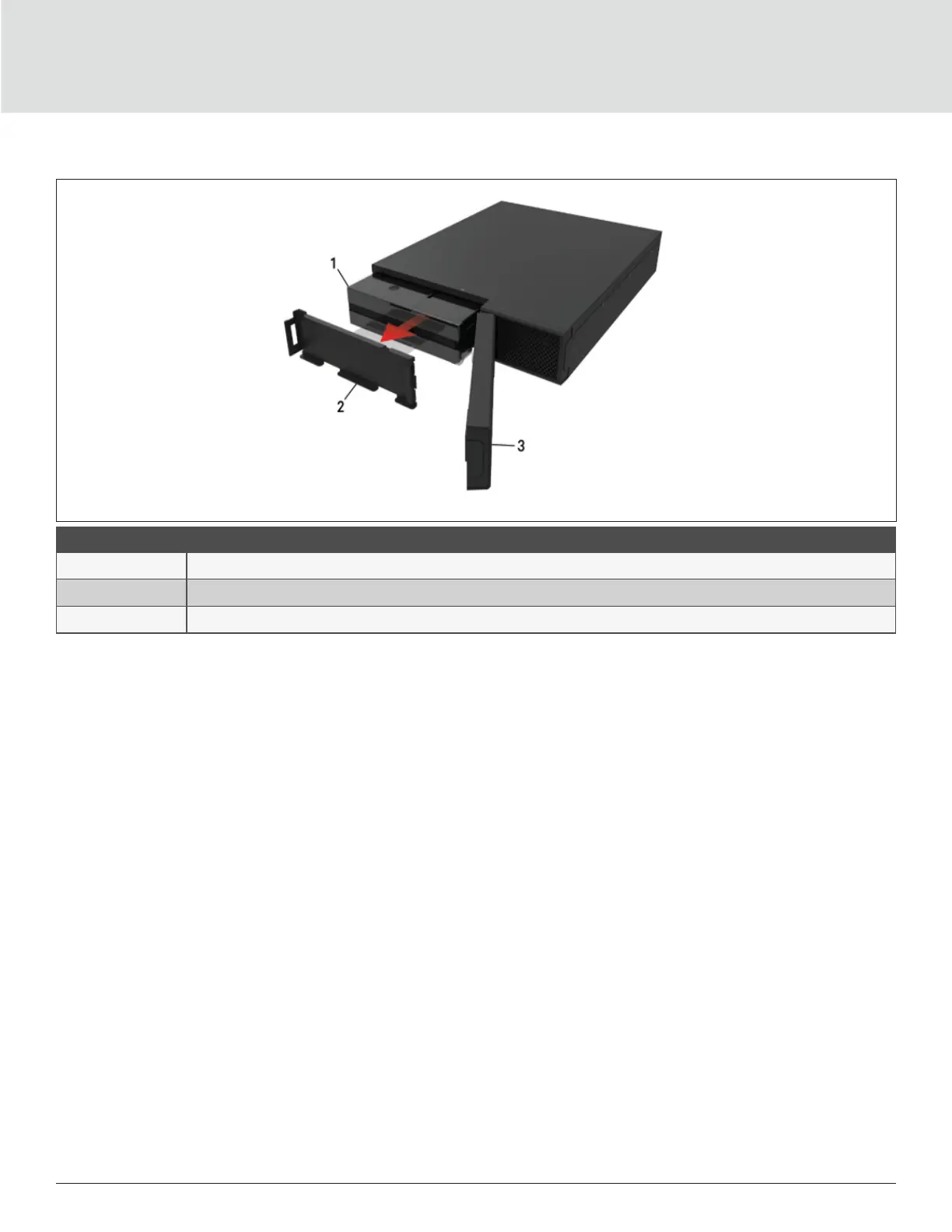

ITEM DESCRIPTION
1 Battery pack
2 Battery door
3 Front panel
1. For 5-kVA to 20-kVA models ,Press the buttons on both sides of the UPS front panel, and pull the panel
open, then, loosen and remove the screw from the battery door, see Figure 5-2 on the next page.
2. Lay the battery door and screw aside for reassembly.
3. Grasp the battery handle, and pull out the battery pack, see Figure 5-2 on the next page.
4. Unpack the replacement battery pack, taking care not to damage the packaging to re-use when disposing of
the old battery.
5. Compare the new and old battery pack to make sure they are the same type and model. If so, proceed with
step 6. If they are dierent, stop and contact your Vertiv representative, or Technical Support, http://www.
Vertiv.com/en-us/support/.
6. Line-up and slowly push-in each replacement battery pack. until 2/3 of the length is in the bay, then lift up
and continue to push smoothly until the battery pack is fully inserted in the bay. The battery is fully-inserted
if the battery door ts ush against the UPS.
7. Re-attach the battery door with the screw, and replace the front cover.
8. Activate the new battery pack(s) using the operating/display panel:
To Next Page
